BUILDING WIRE & POWER CABLES
The right cable.
For every connection.
Explore bare copper conductors, building wires and low voltage power cables. View construction, specifications and datasheets in one place.
- 23
- Product types
- 0.6/1 kV
- Highest rated voltage
- Technical datasheets
Explore products (23)
CU BARE HDCTW-CSC (HD) · Hard drawn copper
10–500 mm² TIS 64-2517
Hard drawn copper
Concentric stranded · Bare conductor
View details
- Construction
- Hard drawn copper wires laid concentrically; no insulation or outer sheath.
- Listed configurations
- Bare stranded conductor; 10–500 mm². Refer to the PDF tables for each configuration.

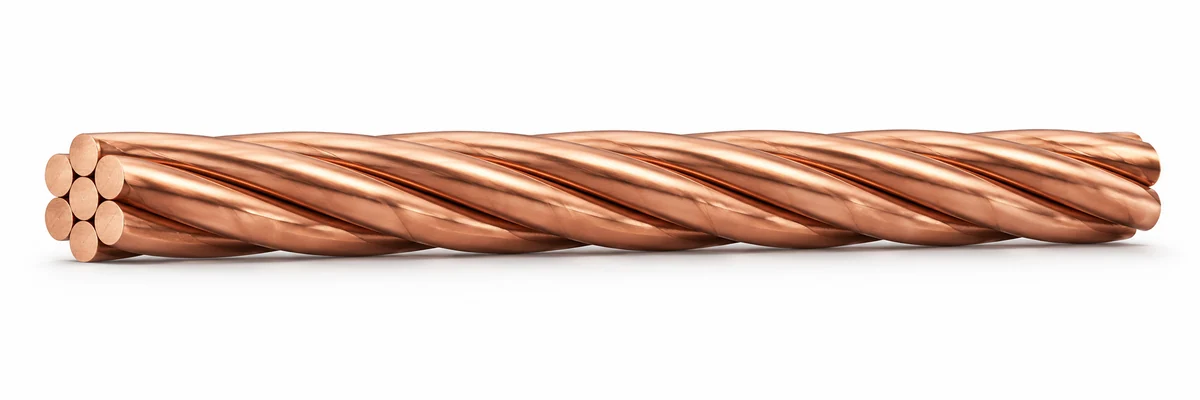

- Illustration shown
- Bare stranded copper example. Strand count and diameter depend on the selected size.
- Reference standards
- TIS 64-2517
CU BARE SDCTW-CSC (SD) · Soft drawn copper
10–500 mm² TIS 11-2553 · ASTM B3 / B8
Annealed copper
Concentric stranded · Bare conductor
View details
- Construction
- Soft drawn (annealed) copper wires laid concentrically; no insulation or outer sheath.
- Listed configurations
- Bare stranded conductor; 10–500 mm². Refer to the PDF tables for each configuration.

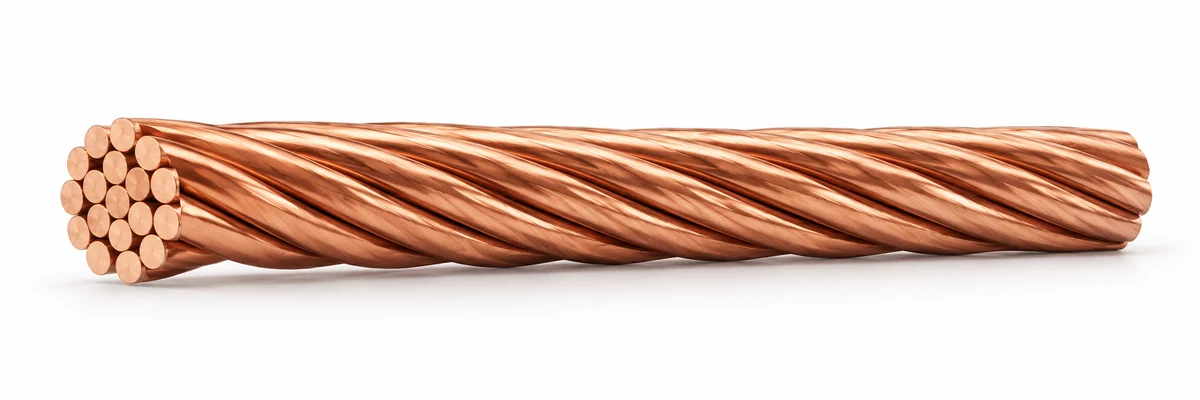

- Illustration shown
- Bare stranded copper example. Strand count and diameter depend on the selected size.
- Reference standards
- TIS 11-2553 · ASTM B3 / B8
60227 IEC 01THW · PVC insulated single core
450/750 V · 70 °C TIS 11-2553 Part 3 · IEC 60227-3
Solid or stranded copper
PVC/C insulation
View details
- Construction
- Annealed solid or stranded copper conductor with PVC/C insulation. No separate sheath.
- Listed configurations
- 1 core; 1.5–400 mm². Refer to the PDF tables for each configuration.

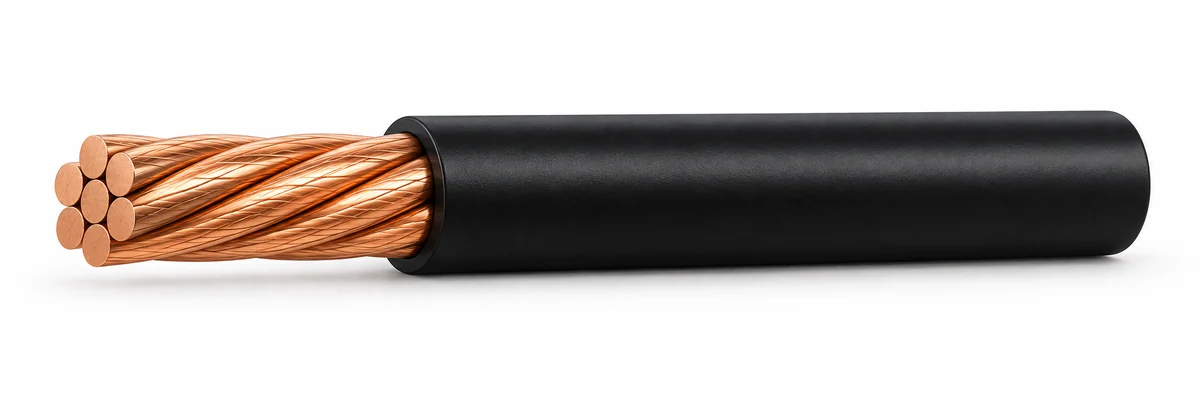

- Illustration shown
- Stranded conductor with black insulation. Other conductor sizes and colours are specified in the PDF.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 02Flexible · PVC insulated single core
450/750 V · 70 °C TIS 11-2553 Part 3 · IEC 60227-3
Flexible bunched copper
PVC/C insulation
View details
- Construction
- Annealed bunched-stranded copper conductor with PVC/C insulation. No separate sheath.
- Listed configurations
- 1 core; 1.5–240 mm². Refer to the PDF tables for each configuration.
- Illustration shown

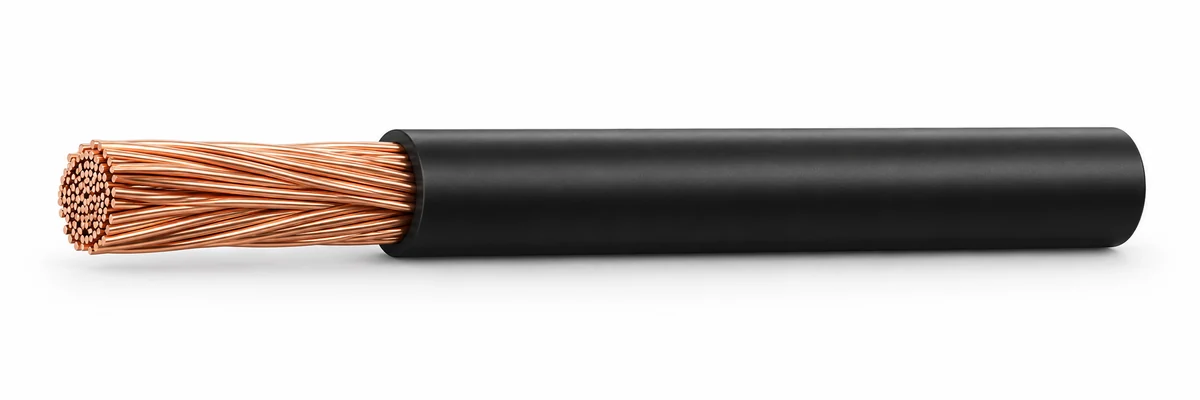

- Fine-stranded conductor with black insulation.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 05IV · Solid single core
300/500 V · 70 °C TIS 11-2553 Part 3 · IEC 60227-3
Solid copper conductor
PVC/C insulation
View details
- Construction
- One solid annealed copper conductor with PVC/C insulation. No separate sheath.
- Listed configurations
- 1 core; 0.5–1 mm². Refer to the PDF tables for each configuration.
- Illustration shown
- Solid copper conductor with black insulation.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 06IV · Flexible single core
300/500 V · 70 °C TIS 11-2553 Part 3 · IEC 60227-3
Flexible bunched copper
PVC/C insulation
View details
- Construction
- Annealed bunched-stranded copper conductor with PVC/C insulation. No separate sheath.
- Listed configurations
- 1 core; 0.5–1 mm². Refer to the PDF tables for each configuration.
- Illustration shown

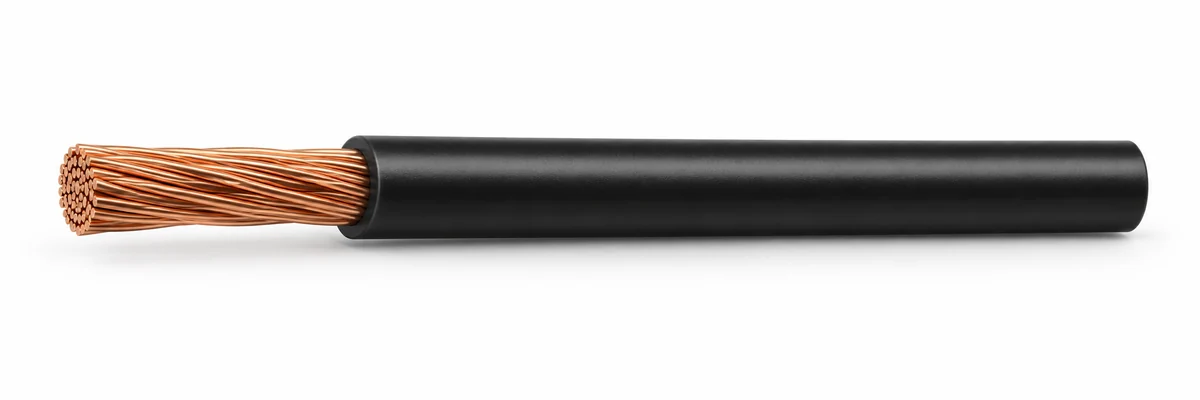

- Fine-stranded conductor with black insulation.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 07HIV · Heat resistant solid wire
300/500 V · 90 °C TIS 11-2553 Part 3 · IEC 60227-3
Solid copper conductor
Heat resistant PVC/E insulation
View details
- Construction
- One solid annealed copper conductor with heat resistant PVC/E insulation.
- Listed configurations
- 1 core; 0.5–2.5 mm². Refer to the PDF tables for each configuration.
- Illustration shown
- Solid copper conductor with black insulation. The image does not indicate dimensions.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 08HIV · Heat resistant flexible wire
300/500 V · 90 °C TIS 11-2553 Part 3 · IEC 60227-3
Flexible bunched copper
Heat resistant PVC/E insulation
View details
- Construction
- Annealed bunched-stranded copper conductor with heat resistant PVC/E insulation.
- Listed configurations
- 1 core; 0.5–2.5 mm². Refer to the PDF tables for each configuration.

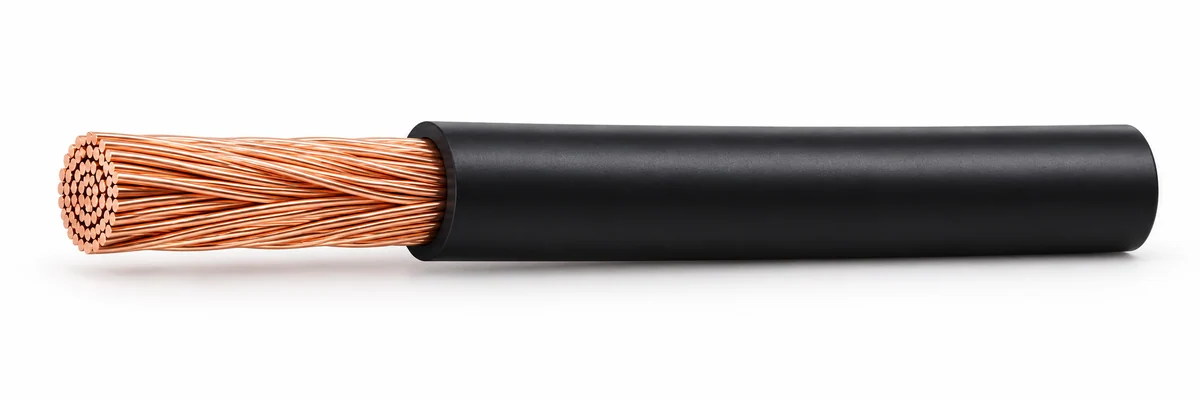

- Illustration shown
- Fine-stranded conductor with black insulation.
- Reference standards
- TIS 11-2553 Part 3 · IEC 60227-3
60227 IEC 10PVC insulated · Double sheathed
300/500 V · 70 °C TIS 11-2553 Part 4 · IEC 60227-4
Solid or stranded copper
PVC/C insulation · PVC/ST4 sheaths
View details
- Construction
- Annealed solid or stranded copper, PVC/C core insulation, black PVC/ST4 inner sheath and black PVC/ST4 outer sheath.
- Listed configurations
- 2–5 cores; 1.5–35 mm². Refer to the PDF tables for each configuration.

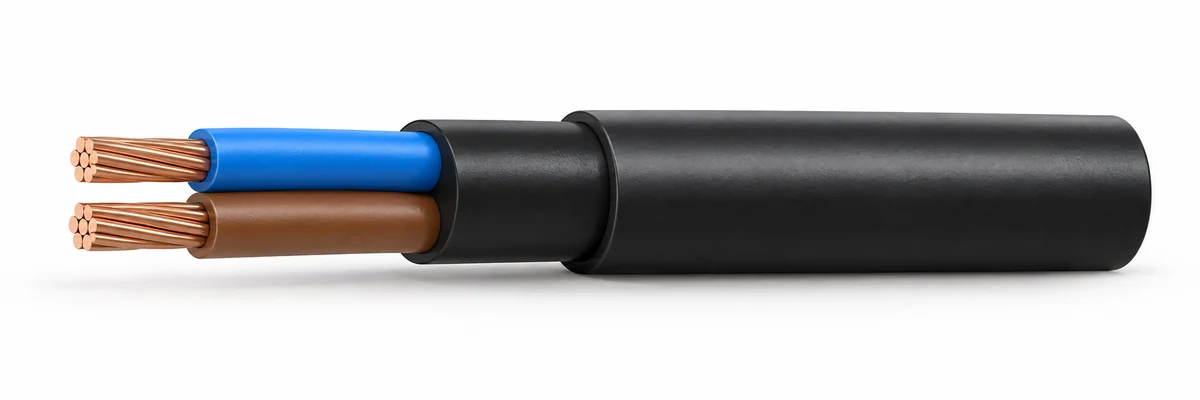

- Illustration shown
- Two-core example with blue and brown insulation. The PDF includes two-, three-, four- and five-core versions.
- Reference standards
- TIS 11-2553 Part 4 · IEC 60227-4
60227 IEC 43Flexible · Double insulation
300/300 V · 70 °C TIS 11-2553 Part 5 · IEC 60227-5
Flexible bunched copper
Black inner and green outer PVC
View details
- Construction
- One annealed bunched-stranded copper conductor with black PVC/D inner insulation and green PVC/D outer insulation.
- Listed configurations
- 1 core; 0.5–0.75 mm². Refer to the PDF tables for each configuration.
- Illustration shown

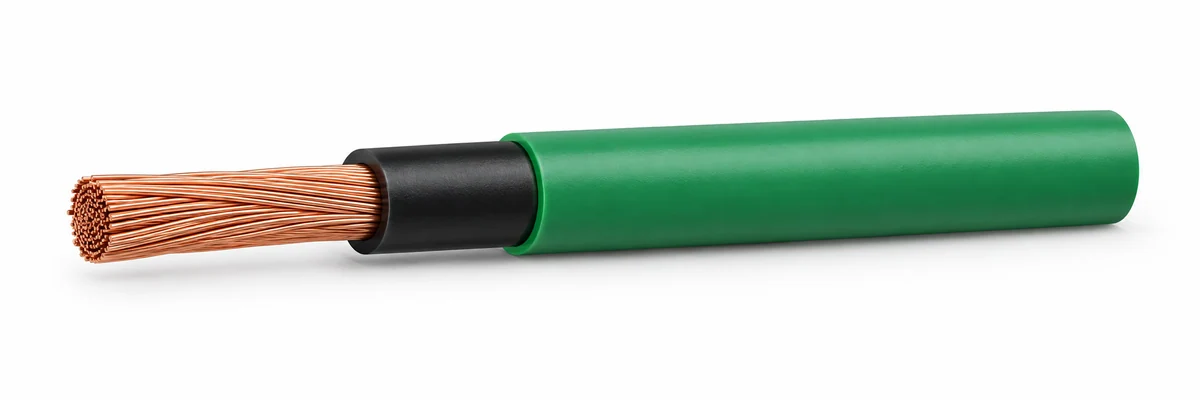

- Single-core example with two insulation layers.
- Reference standards
- TIS 11-2553 Part 5 · IEC 60227-5
60227 IEC 52Light-duty flexible cable
300/300 V · 70 °C TIS 11-2553 Part 5 · IEC 60227-5
Flexible bunched copper
PVC/D insulation · PVC/ST5 sheath
View details
- Construction
- Flexible bunched copper conductors with PVC/D insulation and PVC/ST5 sheath. Flat two-core and round versions are included.
- Listed configurations
- 2–3 cores; 0.5–0.75 mm². Refer to the PDF tables for each configuration.

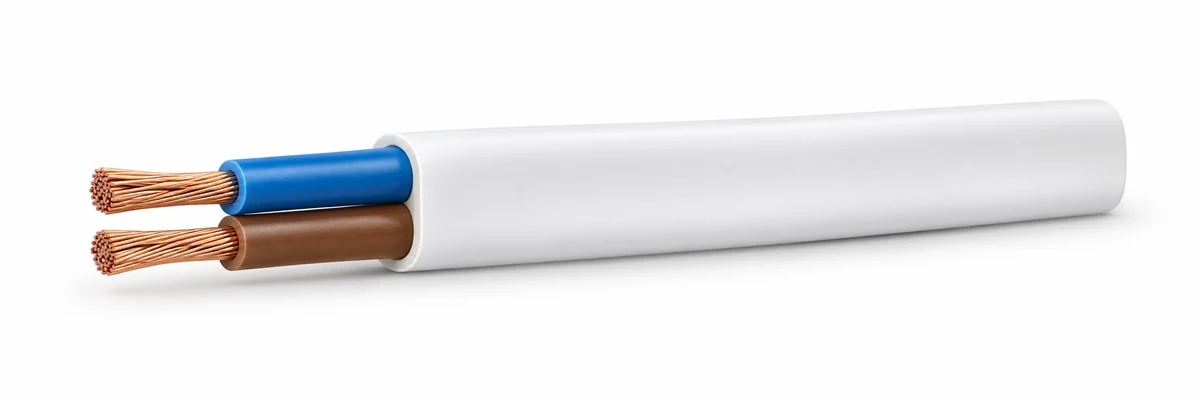

- Illustration shown
- Flat two-core example with blue and brown insulation and white sheath.
- Reference standards
- TIS 11-2553 Part 5 · IEC 60227-5
60227 IEC 53Ordinary flexible cable
300/500 V · 70 °C TIS 11-2553 Part 5 · IEC 60227-5
Flexible bunched copper
PVC/D insulation · PVC/ST5 sheath
View details
- Construction
- Flexible bunched copper conductors with PVC/D insulation and PVC/ST5 sheath. Flat and round versions are included.
- Listed configurations
- 2–5 cores; 0.75–2.5 mm²*. Refer to the PDF tables for each configuration.
- Illustration shown

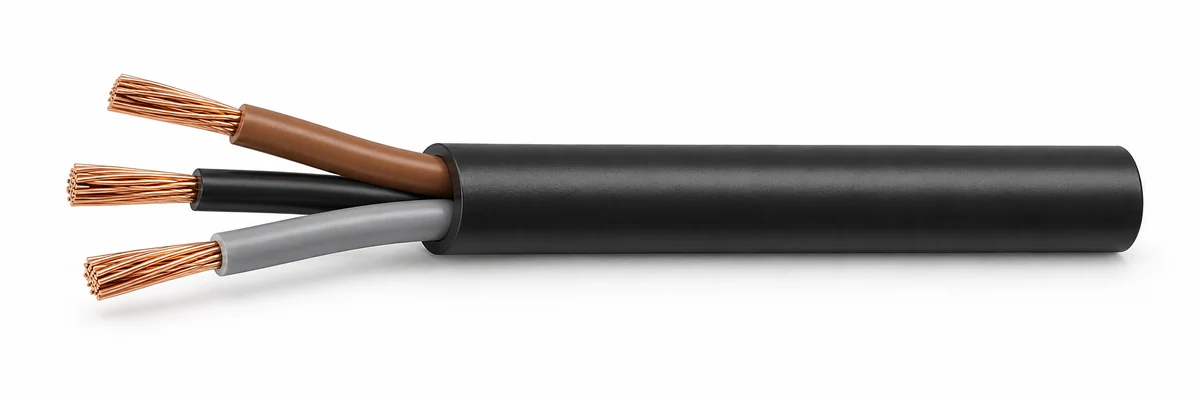

- Round three-core example with brown, black and grey insulation. *Sizes vary by configuration; see the PDF tables.
- Reference standards
- TIS 11-2553 Part 5 · IEC 60227-5
60227 IEC 56Heat resistant · Light-duty flexible
300/300 V · 90 °C TIS 11-2553 Part 5 · IEC 60227-5
Flexible bunched copper
PVC/E insulation · PVC/ST10 sheath
View details
- Construction
- Flexible bunched copper conductors with heat resistant PVC/E insulation and PVC/ST10 sheath.
- Listed configurations
- 2–3 cores; 0.5–0.75 mm². Refer to the PDF tables for each configuration.
- Illustration shown

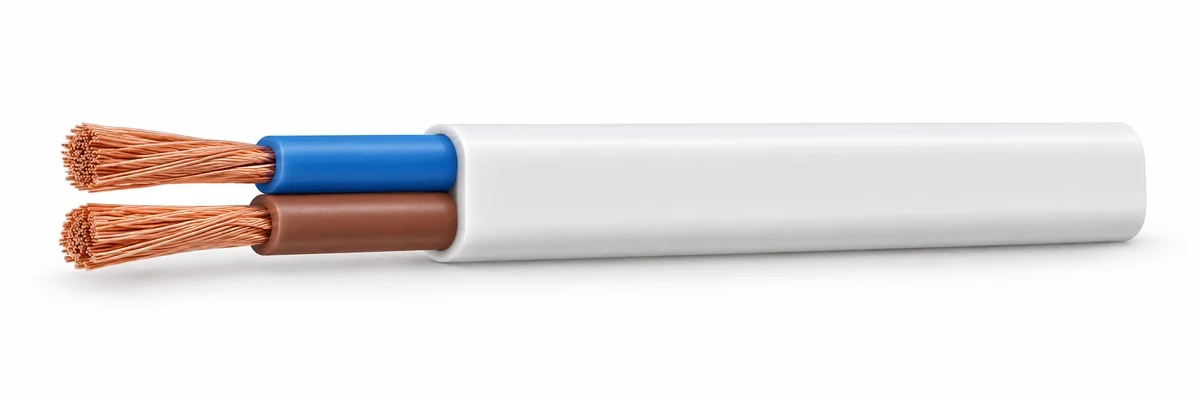

- Flat two-core example with blue and brown insulation and white sheath. Round versions are also listed.
- Reference standards
- TIS 11-2553 Part 5 · IEC 60227-5
60227 IEC 57Heat resistant · Ordinary flexible
300/500 V · 90 °C TIS 11-2553 Part 5 · IEC 60227-5
Flexible bunched copper
PVC/E insulation · PVC/ST10 sheath
View details
- Construction
- Flexible bunched copper conductors with heat resistant PVC/E insulation and PVC/ST10 sheath. Flat and round versions are included.
- Listed configurations
- 2–5 cores; 0.75–2.5 mm²*. Refer to the PDF tables for each configuration.

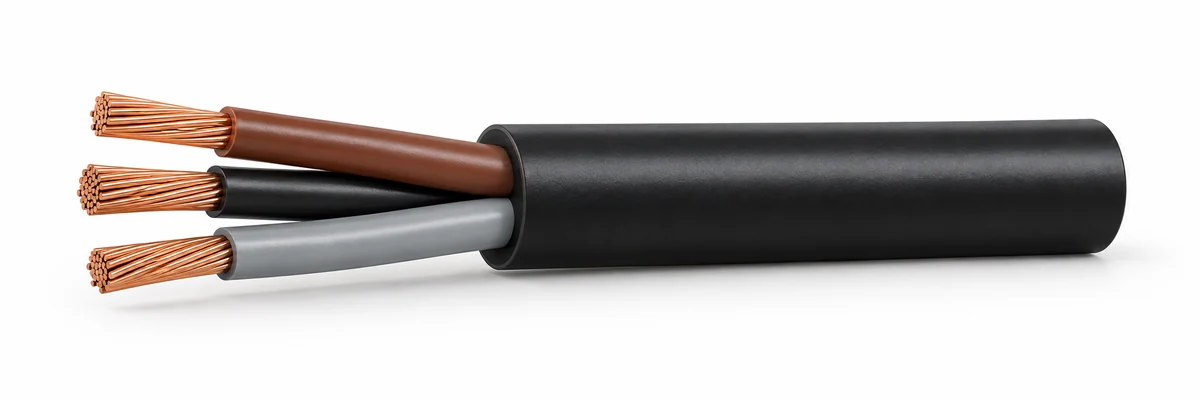

- Illustration shown
- Round three-core example with brown, black and grey insulation. *Sizes vary by configuration; see the PDF tables.
- Reference standards
- TIS 11-2553 Part 5 · IEC 60227-5
VAFPVC insulated · Flat two-core cable
300/500 V · 70 °C TIS 11-2559 Part 101
Solid or stranded copper
PVC/C insulation · White PVC sheath
View details
- Construction
- Solid (Class 1) or stranded (Class 2) copper, blue and brown PVC/C insulation, with a white PVC/ST4 sheath.
- Listed configurations
- 2 cores; 1–16 mm². Refer to the PDF tables for each configuration.
- Illustration shown
- Flat two-core example with solid copper conductors.
- Reference standards
- TIS 11-2559 Part 101
VAF-GFlat cable · With ground
300/500 V · 70 °C TIS 11-2559 Part 101
Solid or stranded copper
White PVC sheath · Ground core
View details
- Construction
- Solid or stranded copper conductors, blue/brown PVC/C power-core insulation and green/yellow earth-core insulation, within a white PVC/ST4 sheath.
- Listed configurations
- 2 cores + ground; 1–16 mm²*. Refer to the PDF tables for each configuration.
- Illustration shown
- Flat two-core plus ground example. *Power-core range; ground sizes depend on the selected configuration.
- Reference standards
- TIS 11-2559 Part 101
NYYPVC insulated · Power cable
450/750 V · 70 °C TIS 11-2559 Part 101
Solid or stranded copper
PVC/C insulation · Black PVC sheath
View details
- Construction
- Solid or stranded copper with PVC/C insulation and PVC/ST4 sheath. Multicore versions have black PVC/ST4 inner and outer sheaths.
- Listed configurations
- 1–4 cores; See PDF size tables. Refer to the PDF tables for each configuration.
- Illustration shown

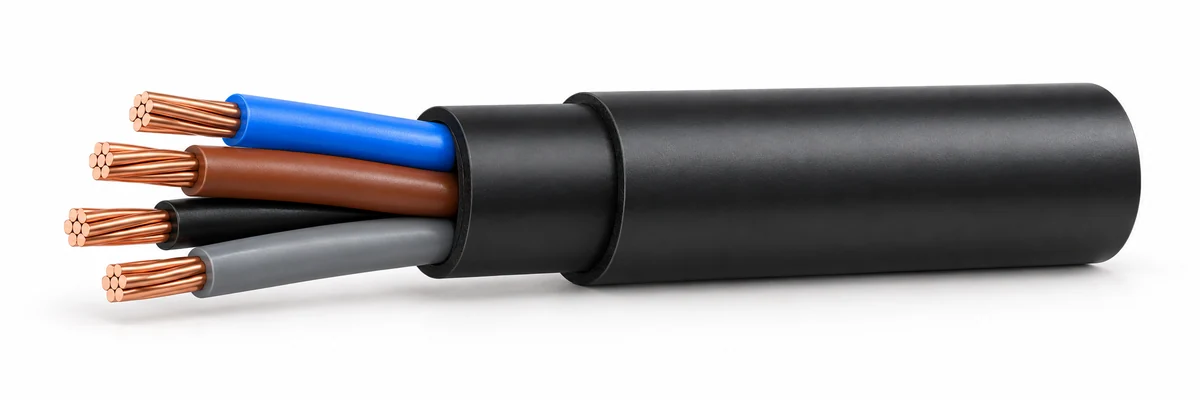

- Four-core example with blue, brown, black and grey insulation and two sheath layers. Single-core construction differs.
- Reference standards
- TIS 11-2559 Part 101
NYY-GPVC power cable · With ground
450/750 V · 70 °C TIS 11-2559 Part 101
Solid or stranded copper
Double PVC sheath · Ground core
View details
- Construction
- Solid or stranded copper, PVC/C core insulation, green/yellow earth core, black PVC/ST4 inner and outer sheaths.
- Listed configurations
- 2–4 cores + ground; See PDF size tables. Refer to the PDF tables for each configuration.
- Illustration shown

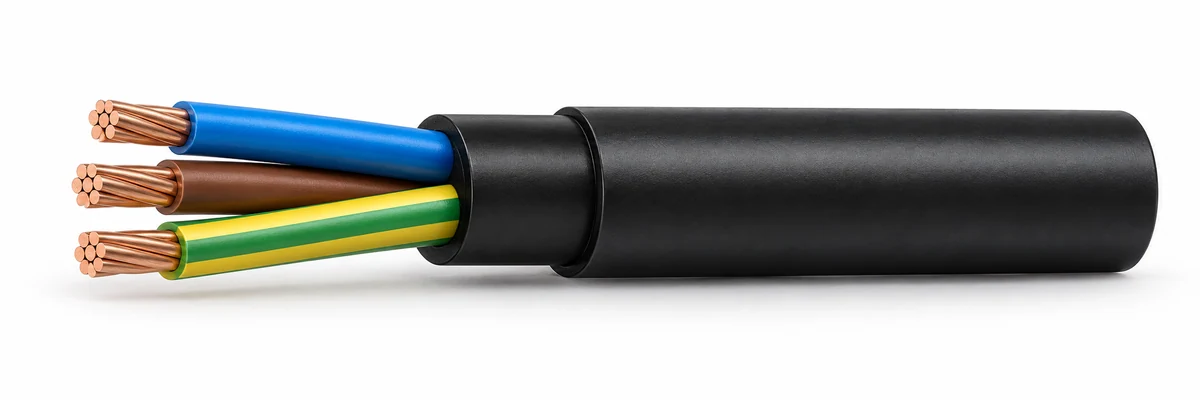

- Two power cores plus a ground core. The PDF also lists three and four power cores plus ground.
- Reference standards
- TIS 11-2559 Part 101
VCTPVC insulated · Flexible cable
450/750 V · 70 °C TIS 11-2559 Part 101
Flexible bunched copper
PVC/D insulation · PVC/ST5 sheath
View details
- Construction
- Annealed bunched-stranded copper conductors, PVC/D insulation and a black PVC/ST5 sheath.
- Listed configurations
- 1–4 cores; 1–35 mm². Refer to the PDF tables for each configuration.

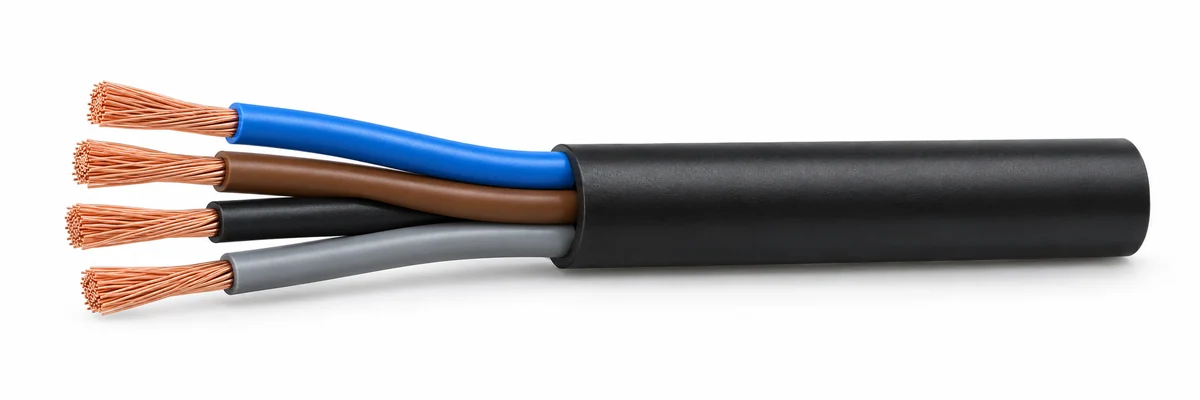

- Illustration shown
- Four-core example with blue, brown, black and grey insulation.
- Reference standards
- TIS 11-2559 Part 101
VCT-GFlexible cable · With ground
450/750 V · 70 °C TIS 11-2559 Part 101
Flexible bunched copper
Black PVC sheath · Ground core
View details
- Construction
- Annealed bunched-stranded copper conductors, PVC/D insulation, green/yellow ground core and a black PVC/ST5 sheath.
- Listed configurations
- 2–4 cores + ground; 1–35 mm²*. Refer to the PDF tables for each configuration.

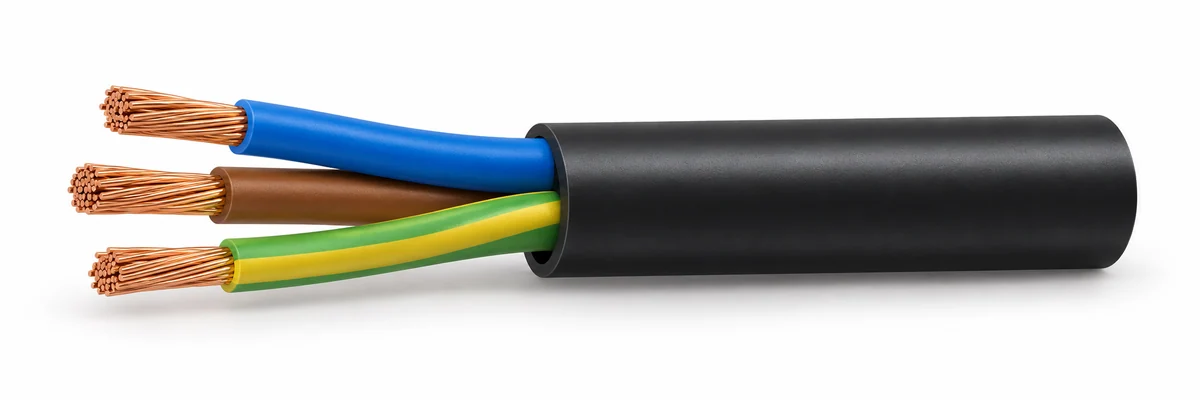

- Illustration shown
- Two power cores plus ground. *Power-core range; refer to the PDF for ground-core sizes.
- Reference standards
- TIS 11-2559 Part 101
CVCU / XLPE / PVC
0.6/1 (1.2) kV · 90 °C TIS 2143 · IEC 60502-1
Stranded copper · XLPE insulation
Black PVC outer sheath
View details
- Construction
- Round concentric or compact stranded copper with XLPE insulation and black PVC outer sheath. The linked catalogue also contains separate AWA/SWA armoured sections.
- Listed configurations
- 1–4 cores; See PDF size tables. Refer to the PDF tables for each configuration.

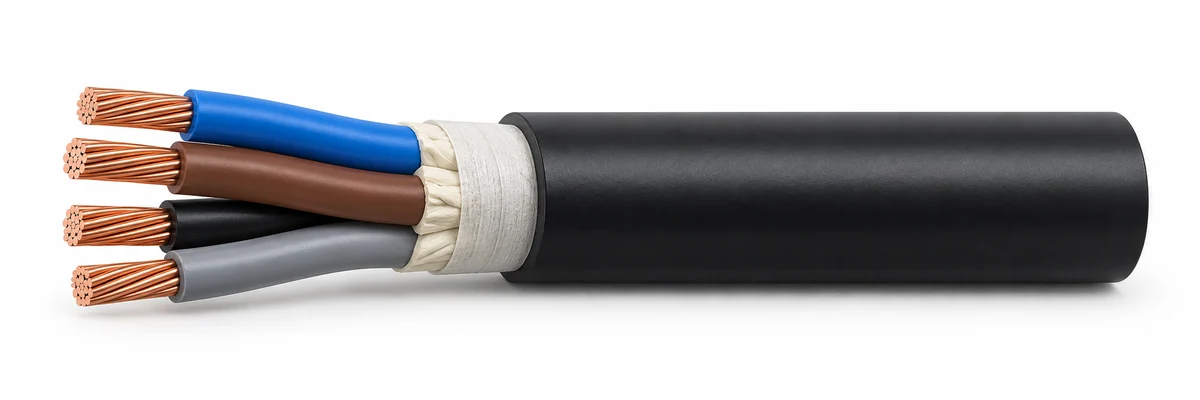

- Illustration shown
- Four-core unarmoured example. Select the appropriate configuration and size from the linked PDF.
- Reference standards
- TIS 2143 · IEC 60502-1
CV-FRPVCCU / XLPE / FRPVC
0.6/1 (1.2) kV · 90 °C TIS 2143 · IEC 60502-1
Stranded copper · XLPE insulation
Flame-retardant PVC sheath
View details
- Construction
- Round concentric or compact stranded copper, XLPE insulation and a black flame-retardant PVC outer sheath.
- Listed configurations
- 1–4 cores; See PDF size tables. Refer to the PDF tables for each configuration.

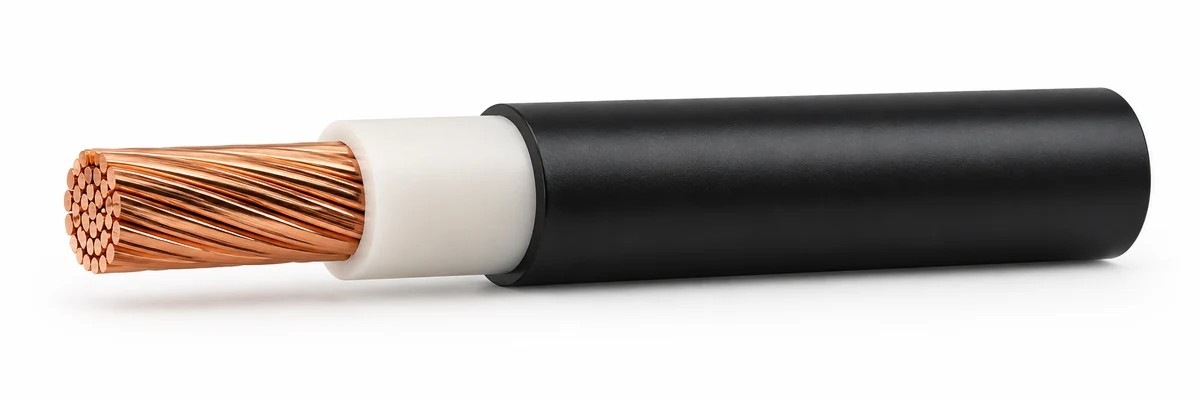

- Illustration shown
- Single-core unarmoured example with natural-coloured XLPE insulation. Multicore versions are also listed.
- Reference standards
- TIS 2143 · IEC 60502-1

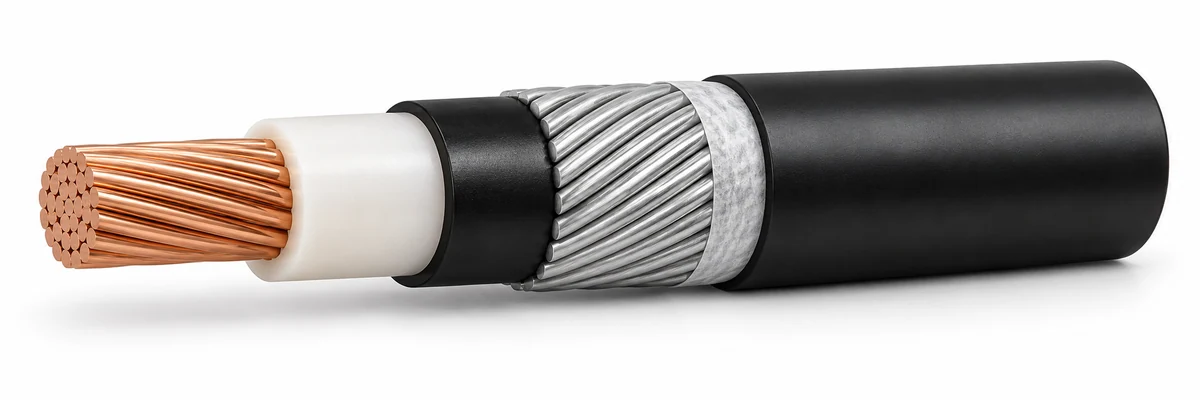

CV-AWACU / XLPE / AWA / PVC or FRPVC
0.6/1 (1.2) kV · 90 °C TIS 2143 · IEC 60502-1
Stranded copper · XLPE insulation
Aluminium wire armour · Black sheath
View details
- Construction
- Copper conductor, natural XLPE insulation, black bedding, aluminium wire armour, separator tape and black outer sheath. FRPVC sheath is an option specified in the catalogue.
- Listed configurations
- 1 core; See PDF size tables. Refer to the PDF tables for each configuration.
- Illustration shown
- Single-core cable with aluminium wire armour. See the PDF for sheath options, sizes and dimensions.
- Reference standards
- TIS 2143 · IEC 60502-1
Try another cable name or clear the filters.
Product images are generated illustrations of selected configurations and are not to scale. Refer to each linked PDF for available sizes, construction, colours and complete specifications.
