Aluminium wires.
Reliable connections.

Applications

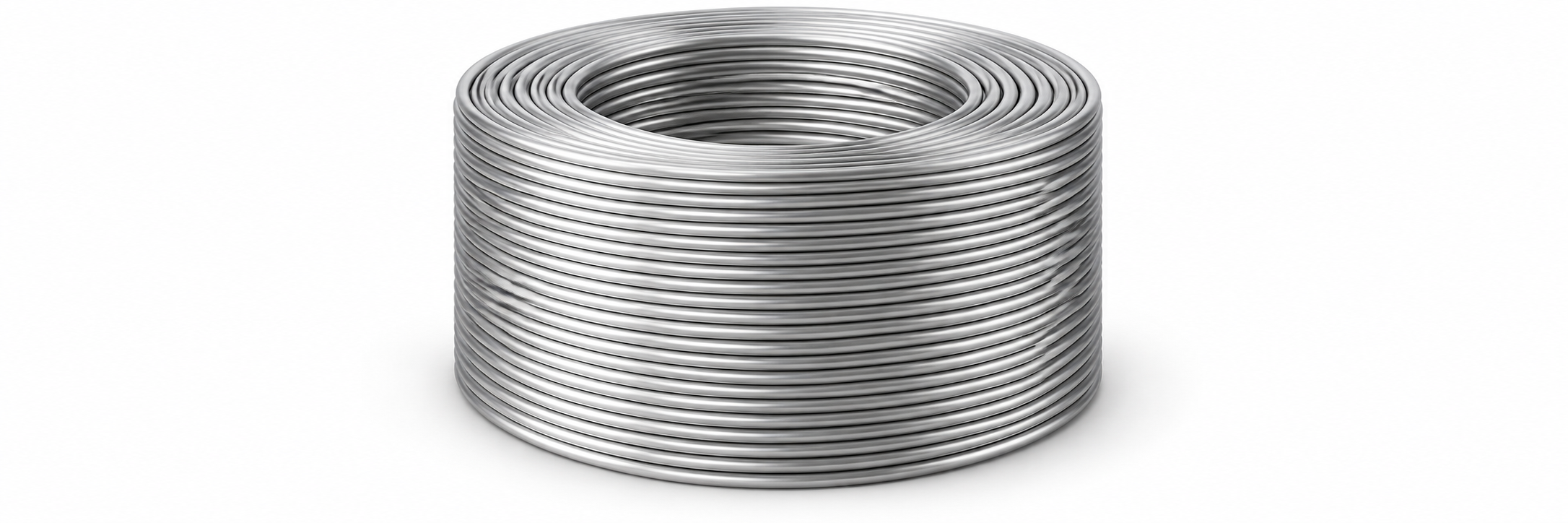

Redraw rod produced by continuous casting for drawing into wire for electrical conductors.

Material

EC 1350-H14 aluminium; minimum aluminium purity 99.50%.

Nominal diameter

9.53 mm.

Minimum conductivity

61.4% IACS.

Maximum resistivity

0.02808 Ω·mm²/m.

Nominal density

2.705 g/cm³.

Tensile strength

103–138 MPa, as listed in the supplied datasheet.

Standard packing

2,000 kg per coil.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Mechanical securing of overhead transmission and distribution line components, including conductors to pin insulators.

Conductor

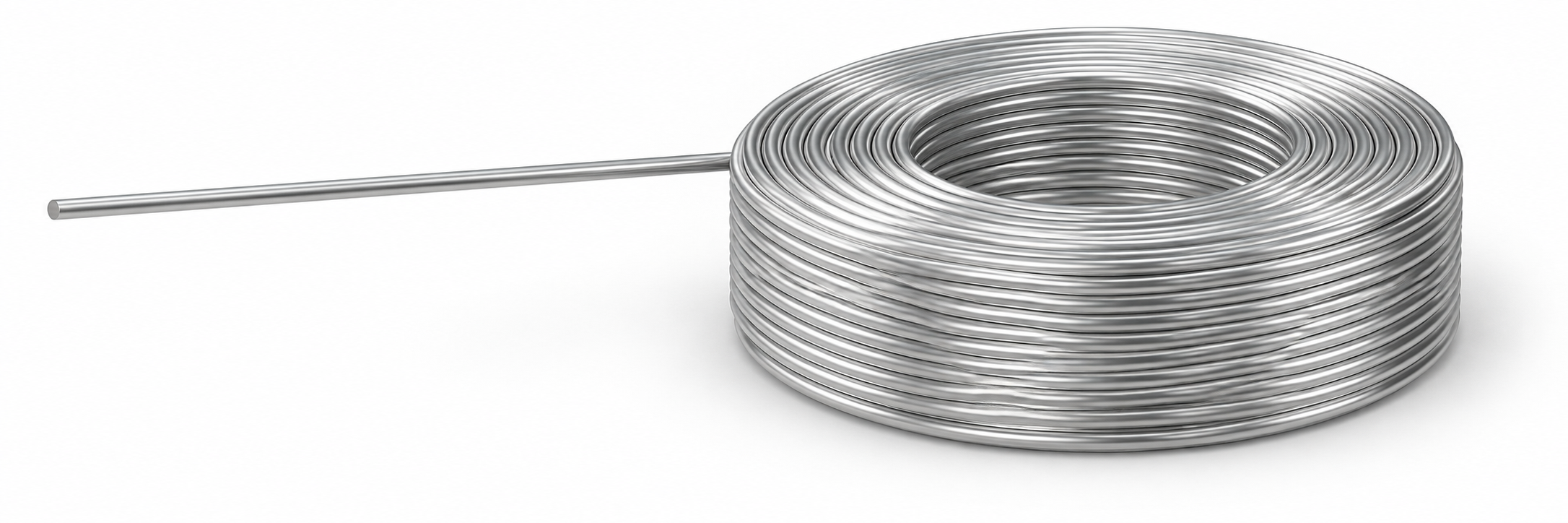

Bare soft drawn circular solid aluminium wire, 1350-O.

Reference standards

MEA specification; PEA specification; ASTM B609.

MEA sizes

6 AWG: 4.115 mm diameter; 4 AWG: 5.189 mm diameter.

PEA size

4.000 mm diameter.

Standard packing

25 kg per coil.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Mechanical securing of conductors and related overhead line components.

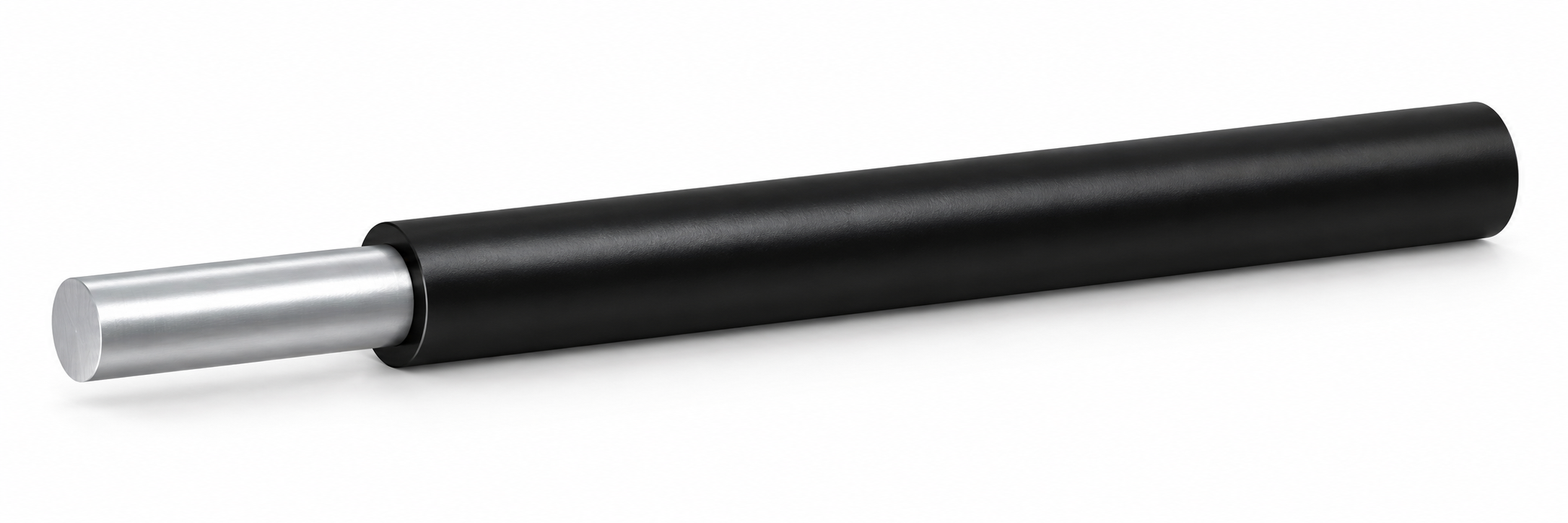

Conductor

Bare soft drawn circular solid aluminium wire, 1350-O.

Covering

PVC for the MEA specification and polyethylene for the PEA specification, as stated under Construction.

Listed sizes

AB4910016: 1 × 16 mm², wire diameter 4.43 mm. A14910004: 1 × 4 mm (wire diameter), listed area 12.57 mm².

Covering thickness

1.1 mm for AB4910016; 1.0 mm for A14910004.

Standard packing

100 m per coil.

Datasheet note

The second size-table heading repeats MEA, while the Construction section distinguishes MEA/PVC and PEA/PE. Confirm the required specification when ordering.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Mechanical securing of overhead transmission and distribution line components.

Construction

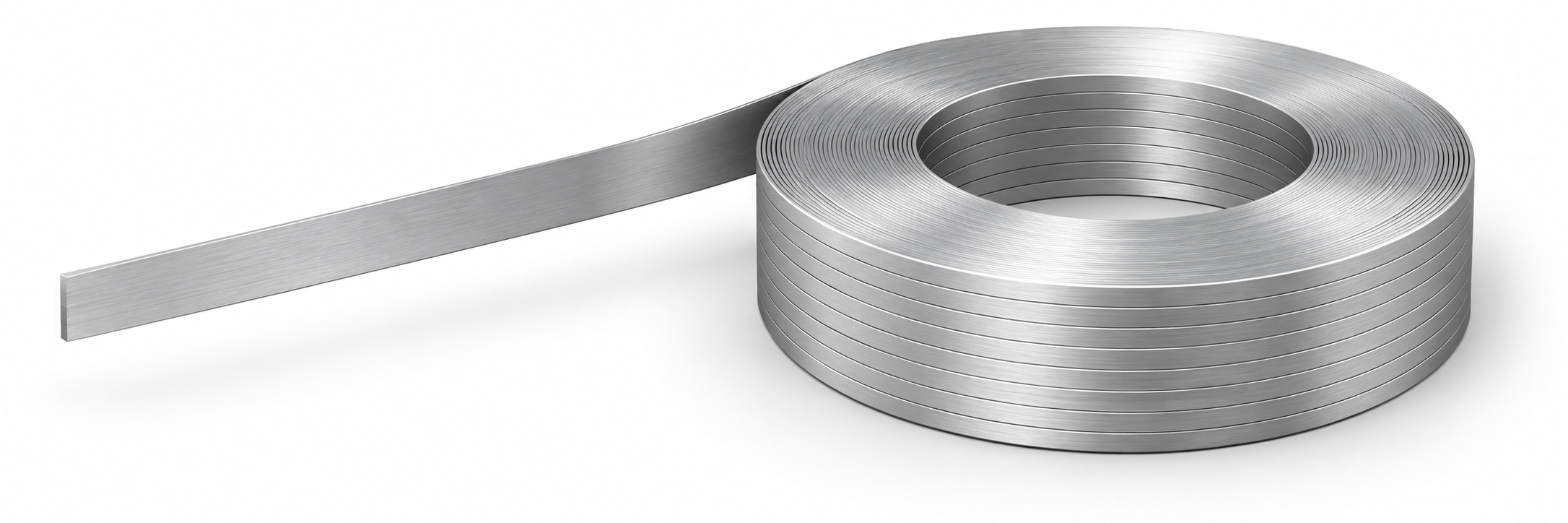

Bare soft drawn aluminium flat armour tape.

Reference standard

PEA specification.

Dimensions

10 mm width × 1 mm thickness.

Weight

37 kg/km, as listed in the supplied datasheet.

Breaking strength

70–110 kgf.

Standard packing

10 kg per coil.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Overhead transmission and primary and secondary distribution.

Reference standards

IEC 61089; TIS 85-2548, as printed in the supplied datasheet.

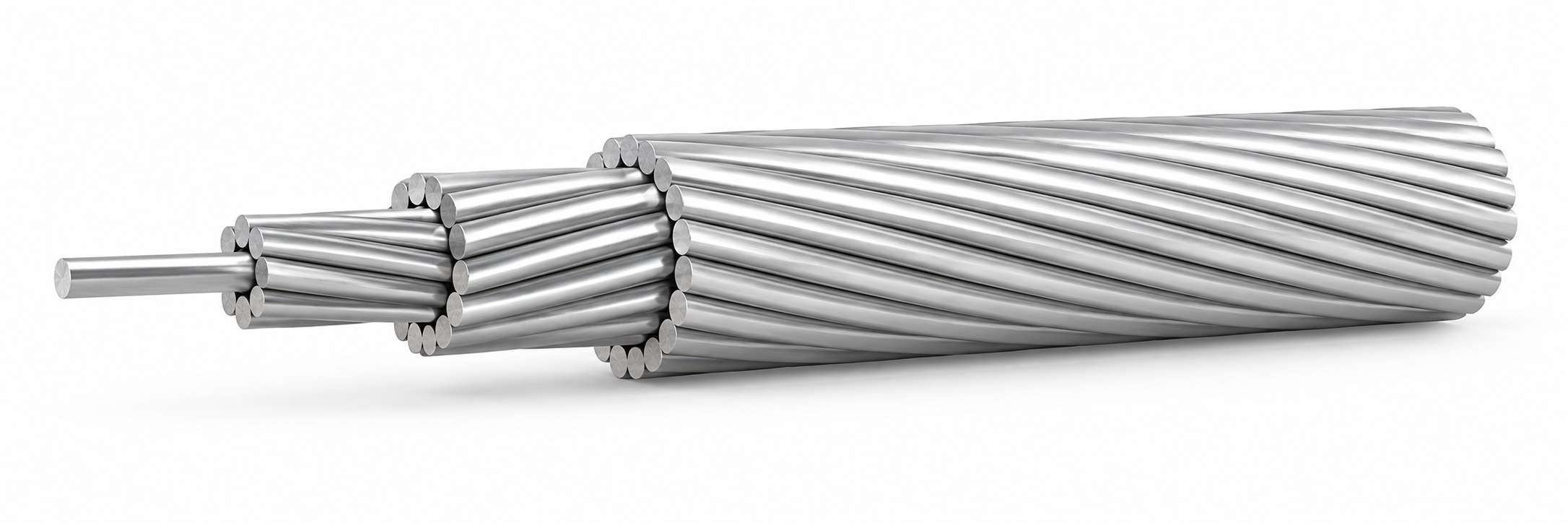

Conductor

Hard drawn aluminium wires in concentric stranded construction.

Listed sizes

10–1,500 mm² in the configurations listed in the PDF.

Construction options

7, 19, 37, 61 and 91 wires, depending on size and configuration.

Insulation / reinforcement

Bare conductor; no insulation or steel reinforcement specified.

Standard packing

Reel lengths vary with size; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Overhead transmission and primary and secondary distribution.

Reference standard

BS 215-1.

Conductor

Hard drawn stranded aluminium wire.

Listed sizes

23–628 mm²; see individual code names and constructions in the PDF.

Code names

Includes Midge, Gnat, Mosquito, Ant, Bee, Hornet, Spider and Cicada.

Insulation / reinforcement

Bare conductor; no insulation or steel reinforcement specified.

Standard packing

Reel lengths vary with size; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Overhead transmission and primary and secondary distribution.

Reference standard

ASTM B231.

Conductor

Hard drawn stranded aluminium wire.

Listed size units

The source uses AWG and circular mils (cmil). Use the code name and exact size from the PDF.

Listed range

Includes 6 AWG (Peachbell) through 2,750,000 cmil (Bitterroot).

Insulation / reinforcement

Bare conductor; no insulation or steel reinforcement specified.

Standard packing

Reel lengths vary with size; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Bare overhead transmission and primary and secondary distribution.

Reference standards

IEC 61089; TIS 85-2548, as printed in the supplied datasheet.

Conductor

Hard drawn aluminium wires, stranded.

Steel reinforcement

Zinc-coated galvanized steel wire, solid or stranded depending on construction.

Size designations

Nominal sizes and aluminium/steel combinations are listed separately in the PDF; the actual total area is also tabulated.

Insulation

No insulation specified.

Standard packing

Reel lengths vary with size and construction; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Bare overhead transmission and primary and secondary distribution.

Reference standard

BS 215-2.

Conductor

Hard drawn aluminium wires, stranded.

Steel reinforcement

Zinc-coated galvanized steel wire, solid or stranded.

Code names

Includes Mole, Squirrel, Rabbit, Dog, Panther and Moose; see the PDF for all sizes and constructions.

Insulation

No insulation specified.

Standard packing

Reel lengths vary with code name and construction; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Bare overhead transmission and primary and secondary distribution.

Reference standard

ASTM B232, as stated in the Reference section.

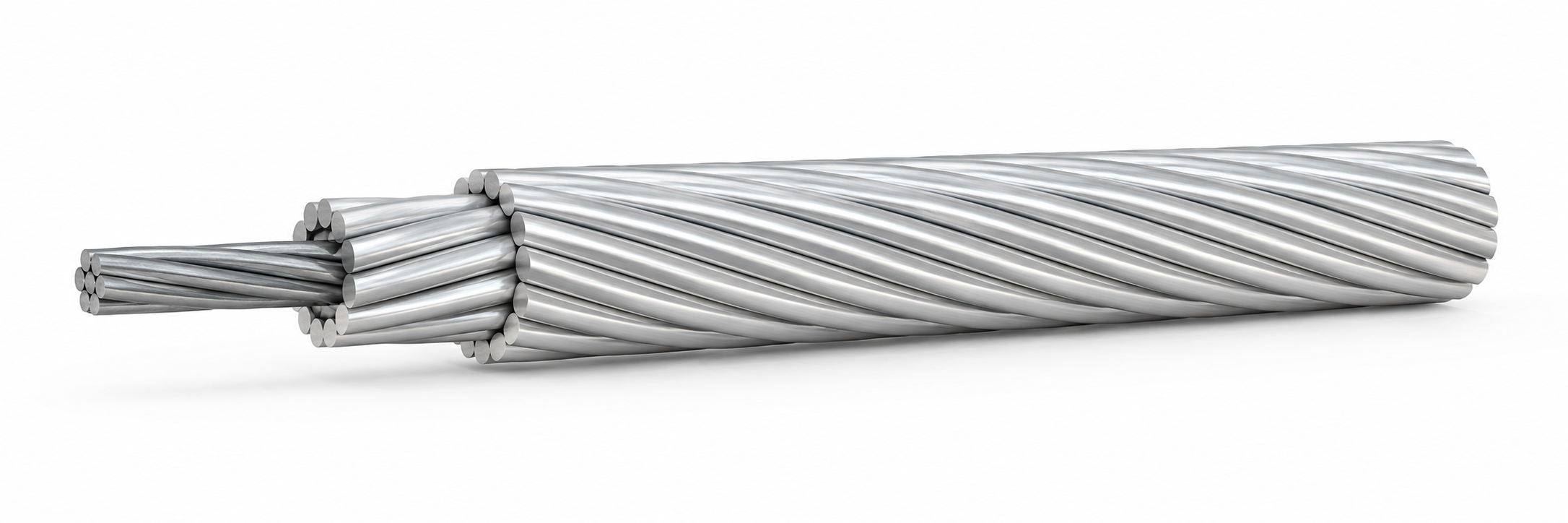

Conductor

Hard drawn aluminium wires, stranded.

Steel reinforcement

Zinc-coated galvanized steel wire, solid or stranded.

Listed sizes

26,240–2,312,000 circular mils (cmil), with the aluminium and steel wire constructions listed by code name.

Insulation

No insulation specified.

Standard packing

Reel lengths vary with code name and construction; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Aerial service and main cables.

Reference standard

TIS 293-2541, Table 1.

Rated voltage / temperature

Circuit voltage not exceeding 750 V; maximum conductor temperature 70 °C.

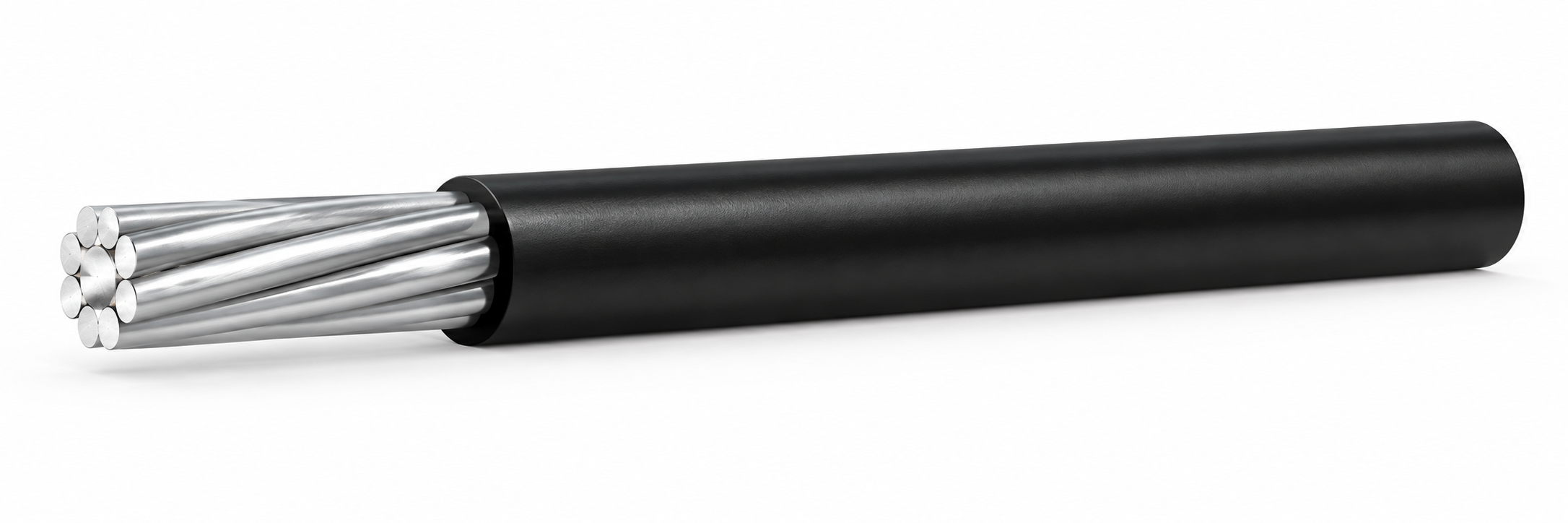

Conductor

Hard drawn aluminium wire, solid or stranded according to the selected size and construction.

Listed sizes

10–500 mm², single core. Solid options are listed for 10 and 16 mm²; other listed constructions are stranded.

Insulation

Black heat-resistant PVC.

AC test voltage

2.5 kV.

Standard packing

Reel lengths vary with size; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Aerial service and main cables.

Reference standards

TIS 293-2541, Table 2; PEA specification.

Rated voltage / temperature

Circuit voltage not exceeding 750 V; maximum conductor temperature 70 °C.

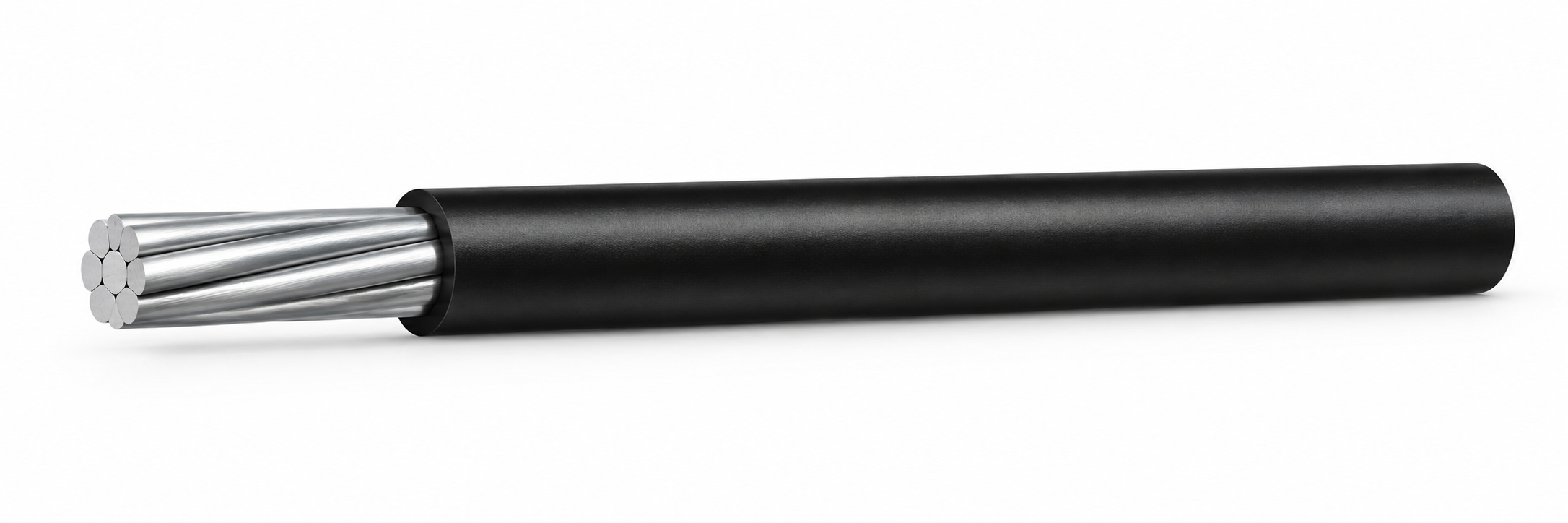

Conductor

Compact concentric lay stranded hard drawn aluminium wire.

Listed sizes

10–500 mm², single core.

Insulation

Black heat-resistant PVC.

AC test voltage

2.5 kV.

Standard packing

Reel lengths vary with size; see the PDF.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Aerial service and main cables.

Reference standards

MEA specification; ICEA S-66-524.

Conductor

Compact concentric lay stranded hard drawn aluminium wire.

Listed sizes

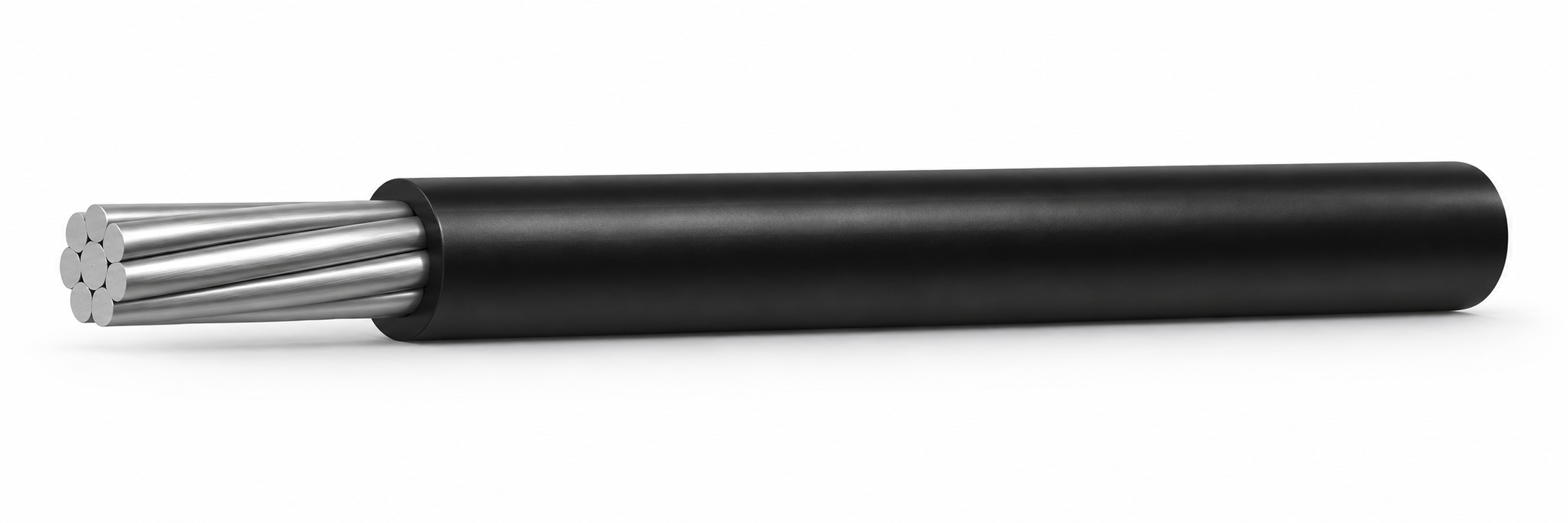

16–185 mm², single core.

Insulation

Black heat-resistant polyethylene (PE).

Rating discrepancy in source

The PDF heading states 750 V / 70 °C, while the body states a circuit voltage not exceeding 600 V and maximum conductor temperature 75 °C. Confirm the applicable rating with CTW before specifying.

Standard packing

1,000 m per reel.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Overhead distribution lines.

Reference standards

AS/NZS 1125; AS/NZS 3560.1.

Rated voltage

0.6/1 (1.2) kV; circuit voltage not exceeding 1,000 V.

Conductor

Compact concentric lay stranded hard drawn aluminium wire.

Insulation

Black filled XLPE, Type X-90. Active cores are identified by longitudinal ribs.

Configurations

2 cores: one active + one neutral; 3 cores: two active + one neutral; 4 cores: three active + one neutral.

Listed sizes

Overall listed range 16–150 mm²; availability depends on core configuration. See the PDF.

Conductor temperature

The Classification section states 80 °C; the insulation is named Type X-90. The catalogue retains those separate source statements.

AC test / packing

3.75 kV AC test; 1,000 m per reel.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

Applications

Exposed installation, raceways in wet or dry locations, or direct burial, as described in the datasheet.

Reference standards

TIS 2143; IEC 60228; IEC 60502-1; AS/NZS 5000.1.

Rated voltage

0.6/1 (1.2) kV; circuit voltage not exceeding 1,000 V.

Conductor

Compact concentric lay stranded hard drawn aluminium wire.

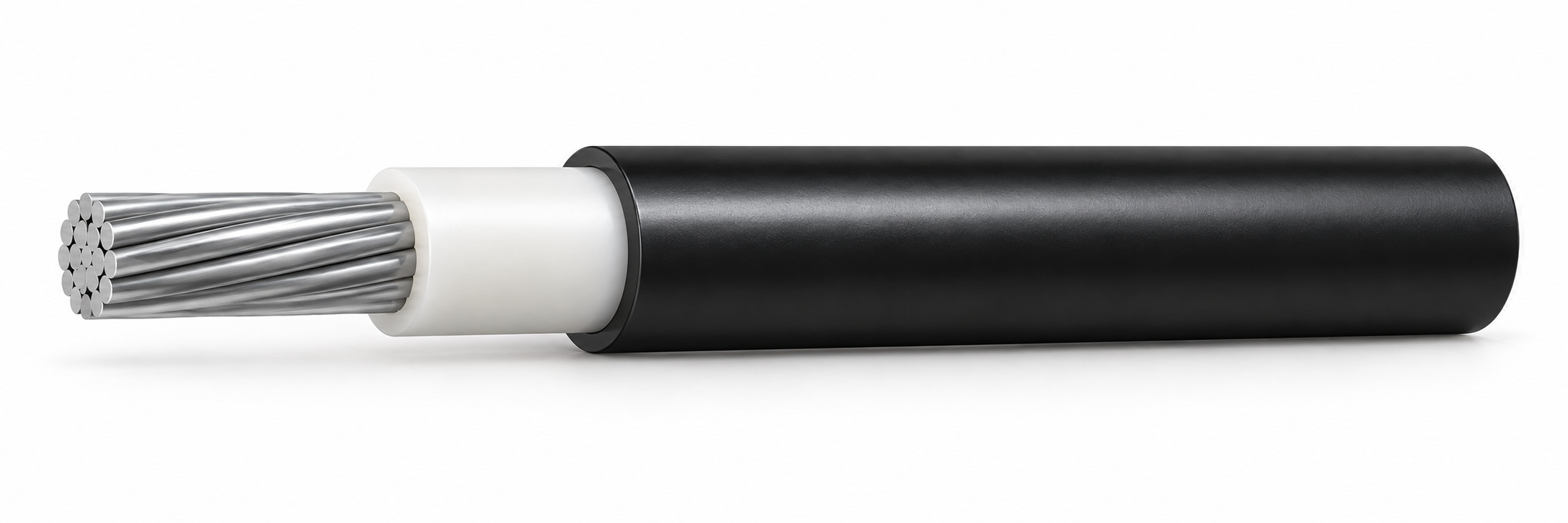

Configurations and sizes

Single, two, three and four cores; 16–500 mm² in the listed configurations. The illustration shows a single-core example.

Insulation / identification

XLPE: natural for single core; blue and brown for two cores; brown, black and grey for three cores; blue, brown, black and grey for four cores.

Filler / wrapping

For multicore versions: PVC/PE rod or polypropylene filler, with polyester (Mylar) and/or spunbond wrapping.

Outer sheath

Black PVC, type ST2. PE, type ST7, is listed as an option. No armour.

Temperature by page

The single- and two-core pages state 80 °C; the three- and four-core pages state 90 °C. Confirm the selected construction rating with CTW.

Options

FR-PVC or LSHF flame-retardant sheath may be supplied on request, subject to the standards stated in the PDF.

AC test voltage

3.5 kV.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.

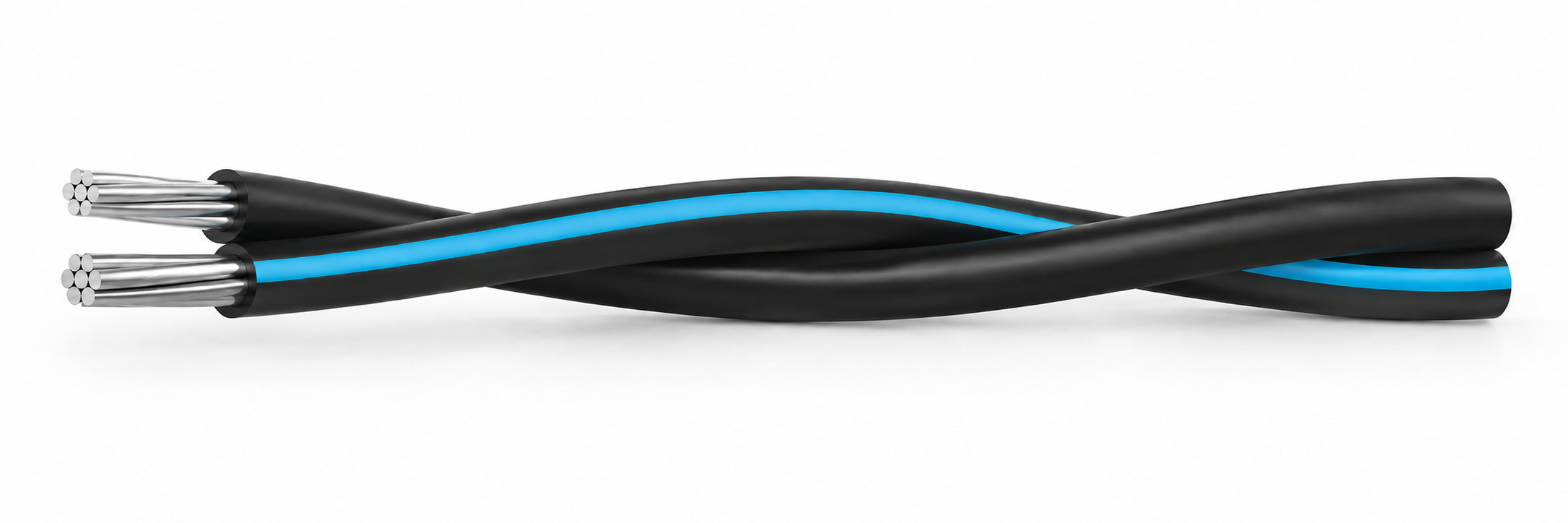

Applications

Aerial bundled service and main cables.

Reference standards

MEA specification; ICEA S-95-658.

Rated voltage / temperature

Circuit voltage not exceeding 600 V; maximum conductor temperature 90 °C.

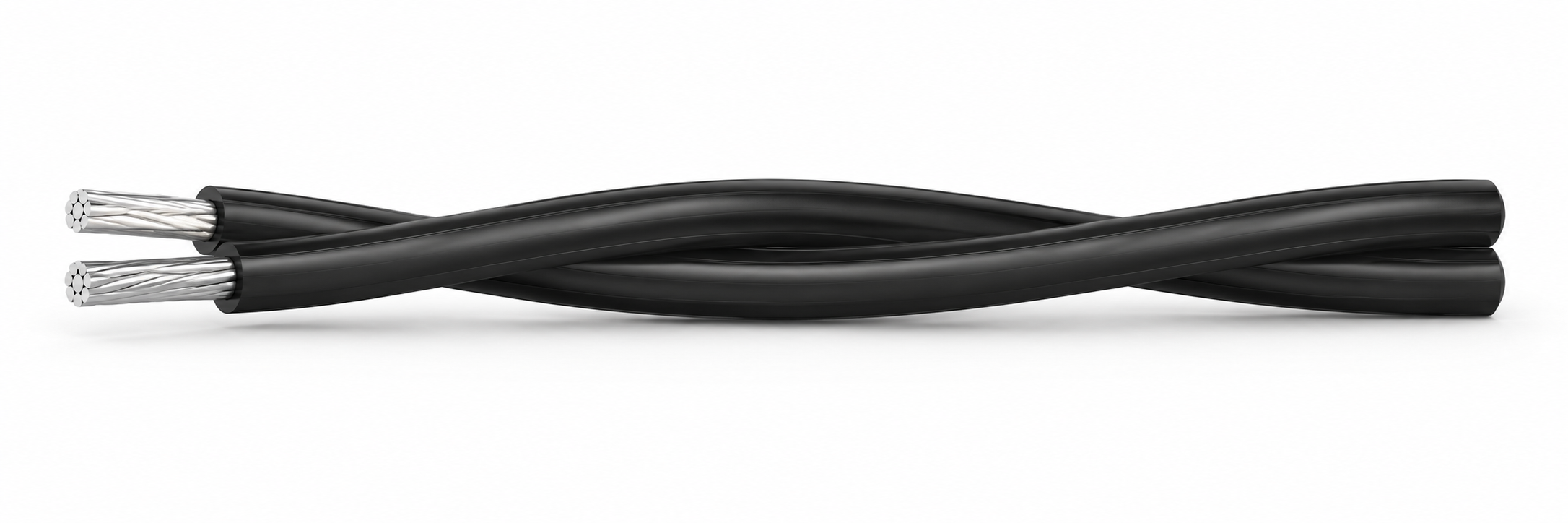

Conductor

Compact concentric lay stranded hard drawn aluminium wire.

Insulation

Black filled XLPE for phase cores; black filled XLPE with a blue stripe for the neutral core.

Configurations

Duplex: one phase + one neutral; triplex: two phases + one neutral; quadruplex: three phases + one neutral.

Listed sizes

Duplex: 16–95 mm²; triplex: 25–70 mm²; quadruplex: 16–150 mm². Refer to the PDF for listed combinations.

Standard packing

500 m per reel.

Refer to the original PDF for all listed sizes, dimensions, electrical characteristics and packing details.
