The right cable.
For every connection.

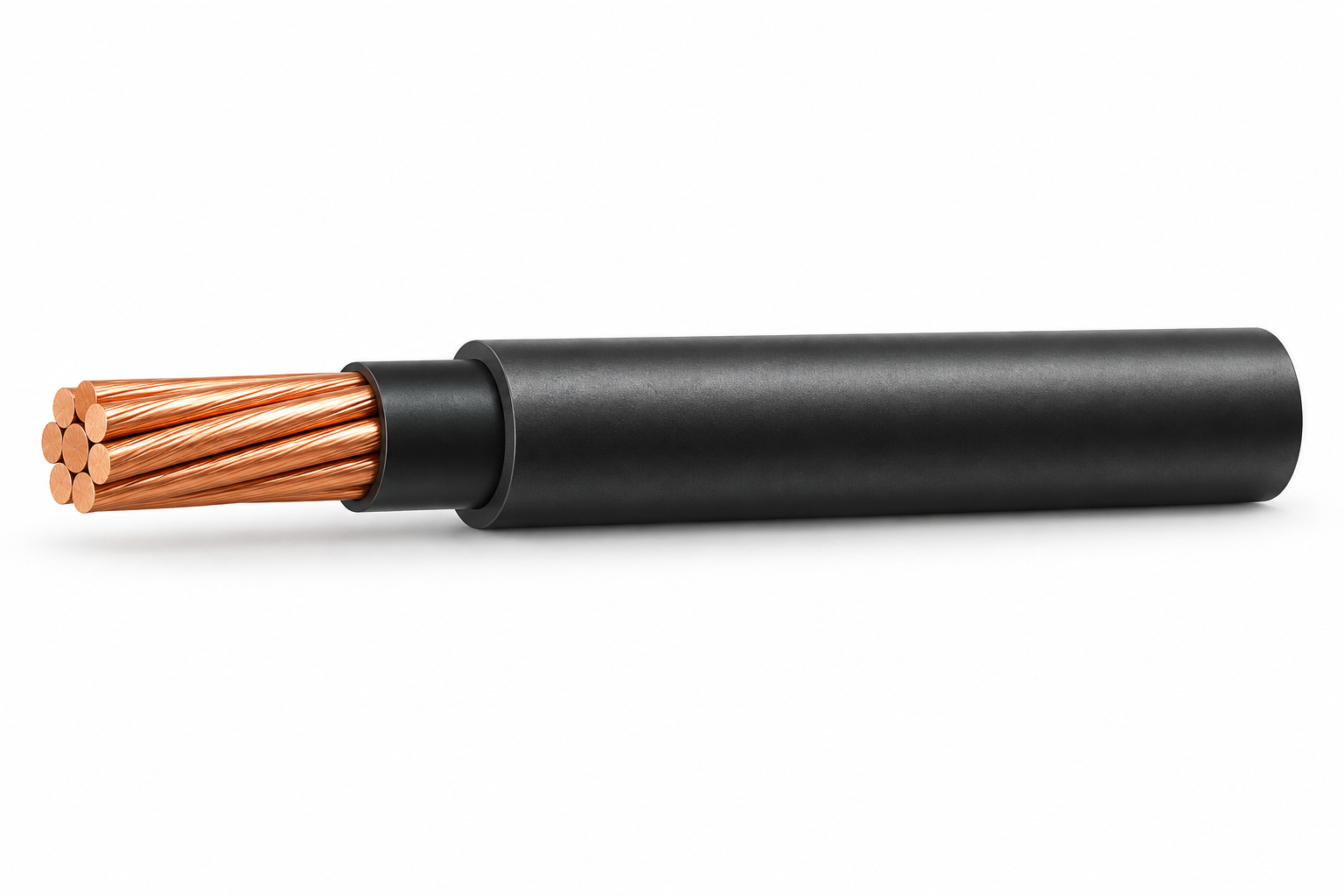

Applications

For airport lighting and control systems. Suitable for installation in conduits or ducts, overhead installation, or direct burial.

Voltage ratings

5 kV

Number of cores

1 core

Conductor size range

4–8 AWG (see the datasheet for the sizes available at each voltage rating)

Conductor

Stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

No metallic shield

Armour

Unarmoured

Sheath / outer layer

Black XLPE insulation; no separate sheath

Normal operating temperature

90 °C

Standards listed in the datasheet

FAA L-824 Type C; ICEA S-96-659 / NEMA WC71-1999; ASTM B3 & B8

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

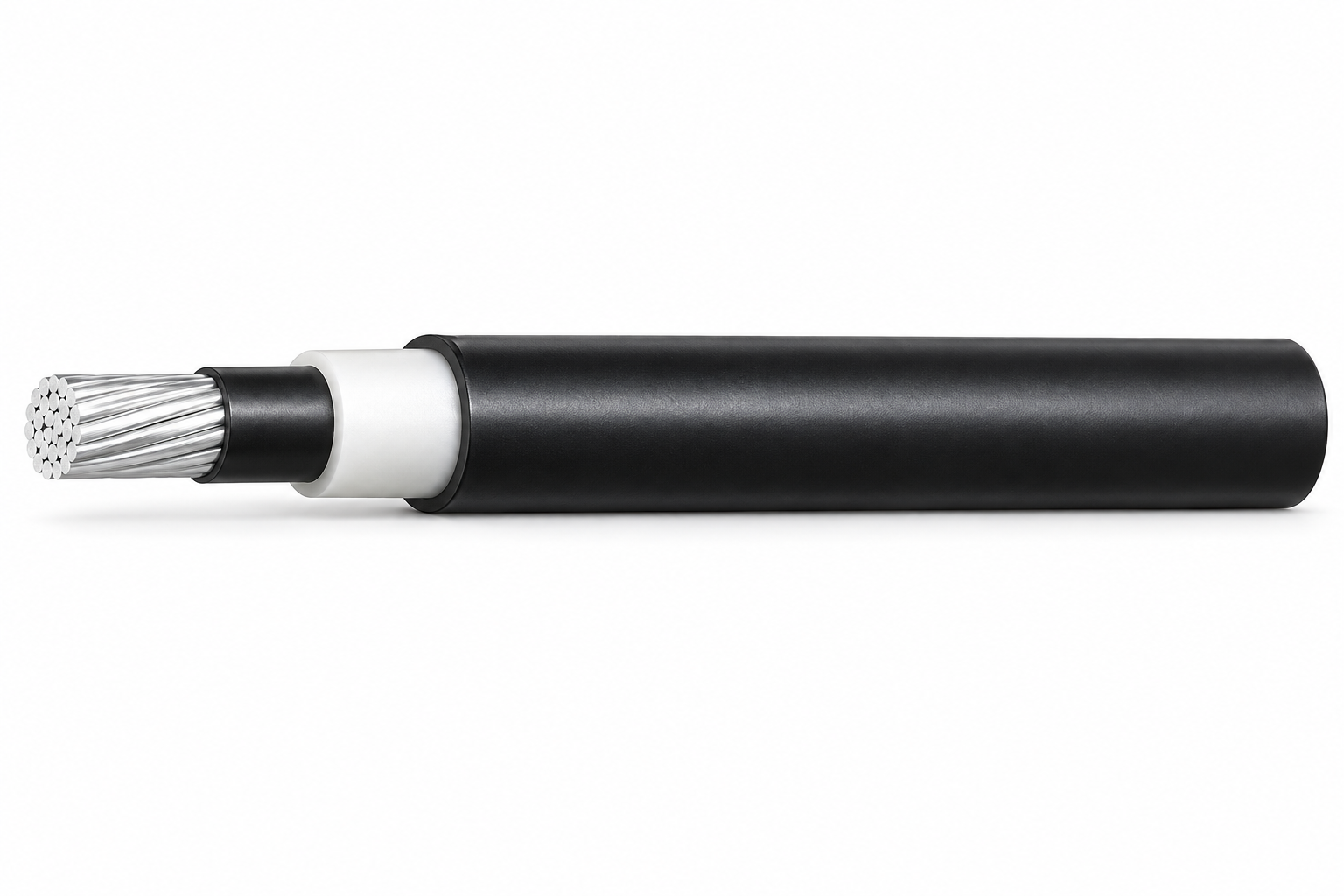

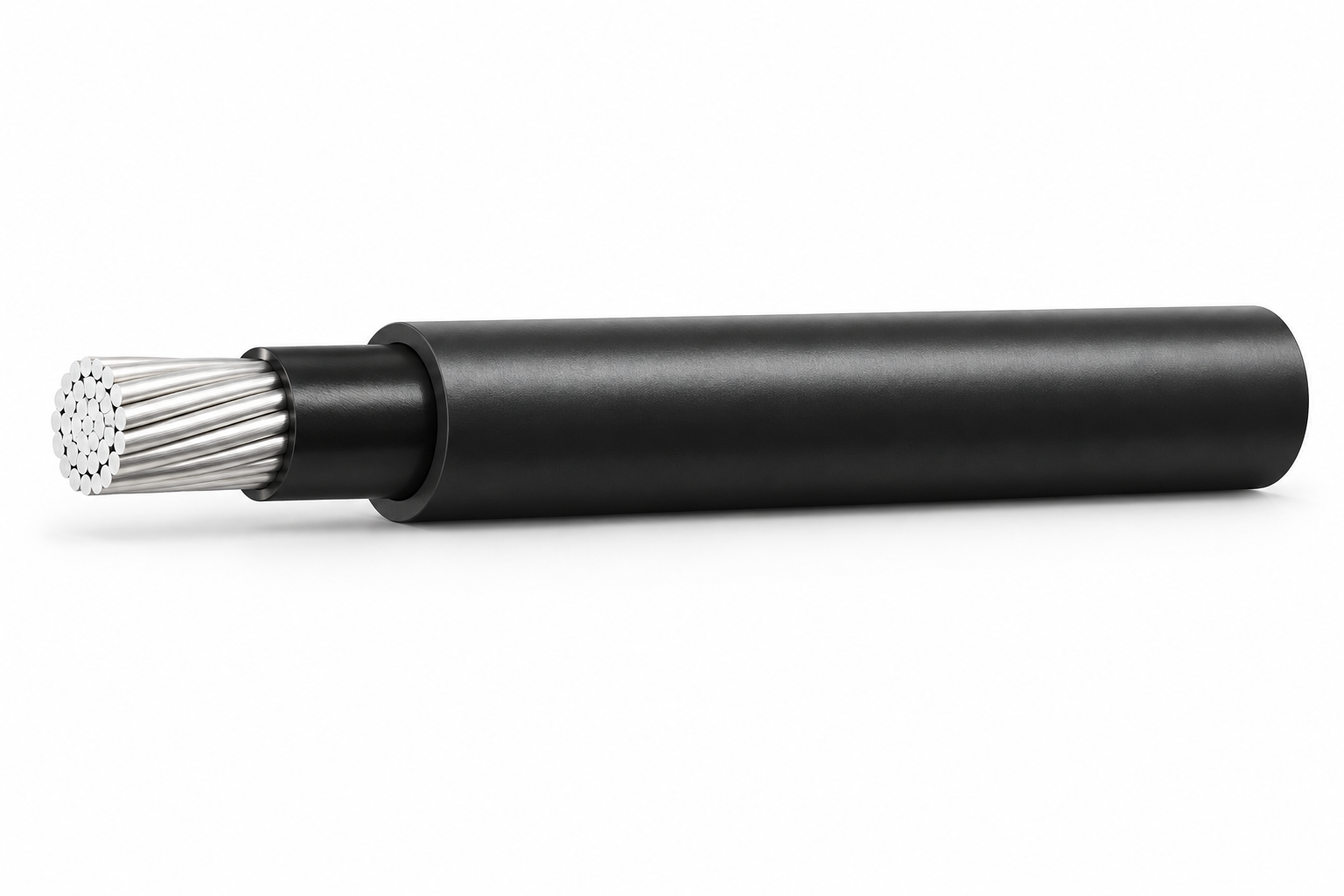

Applications

Partially insulated cable for overhead distribution systems, designed for installation on poles using pin insulators.

Voltage ratings

25 kV • 35 kV

Number of cores

1 core

Conductor size range

35–185 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded aluminium

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

No metallic shield

Armour

Unarmoured

Sheath / outer layer

Track-resistant XLPE

Normal operating temperature

90 °C

Standards listed in the datasheet

ICEA S-66-524 / MEA / PEA

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

Applications

Insulated cable for overhead distribution systems, designed for installation on poles using spacers.

Voltage ratings

15 kV • 25 kV • 35 kV

Number of cores

1 core

Conductor size range

25–240 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded aluminium

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

No metallic shield

Armour

Unarmoured

Sheath / outer layer

Track-resistant XLPE

Normal operating temperature

90 °C

Standards listed in the datasheet

ICEA S-66-524 / MEA / PEA

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

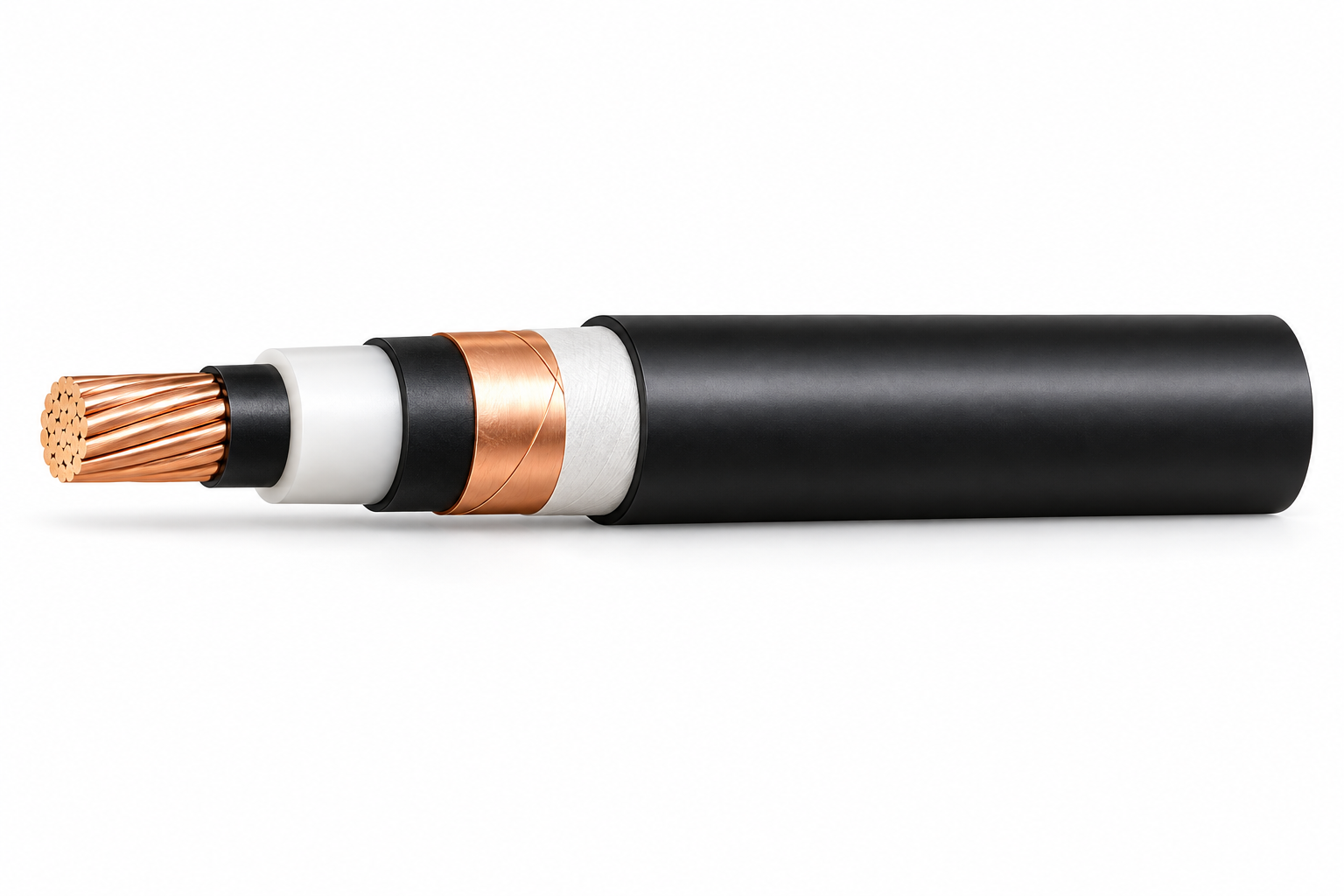

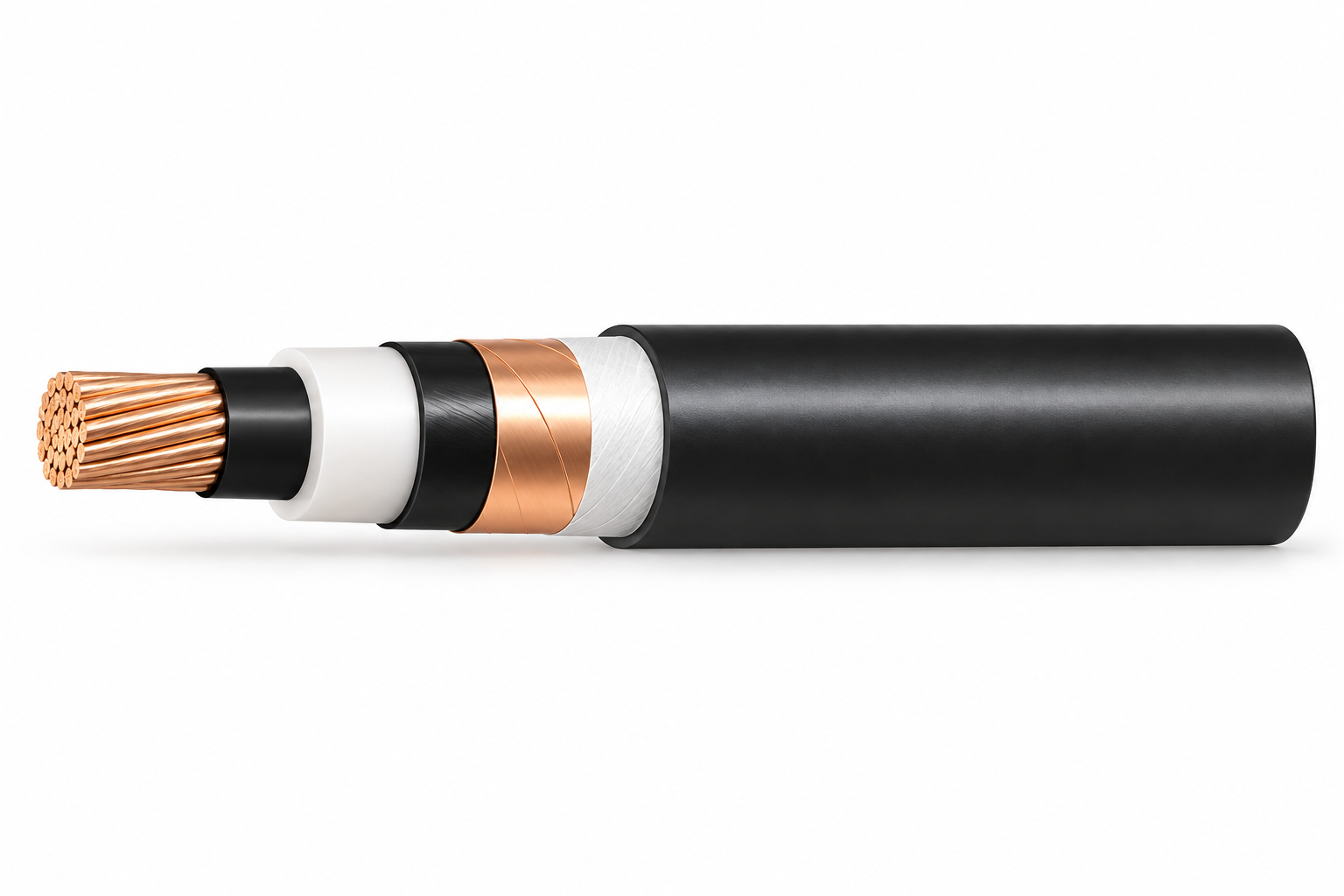

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

5 kV • 15 kV • 25 kV • 35 kV

Number of cores

1 core

Conductor size range

10–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Unarmoured

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

ICEA S-66-524

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

15 kV • 25 kV

Number of cores

1 core

Conductor size range

25–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Unarmoured

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

ICEA S-66-524

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

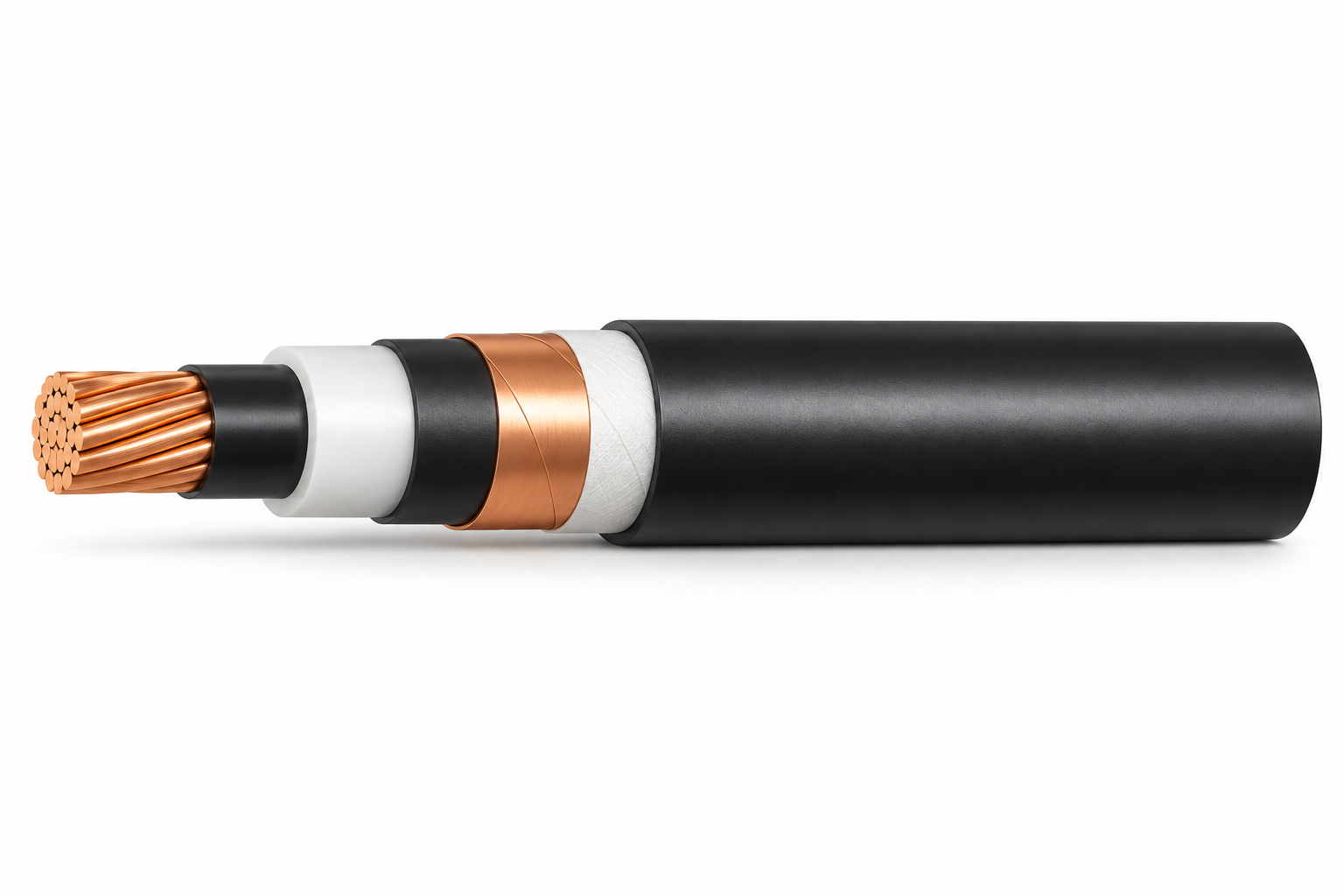

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

1 core

Conductor size range

10–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Unarmoured

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

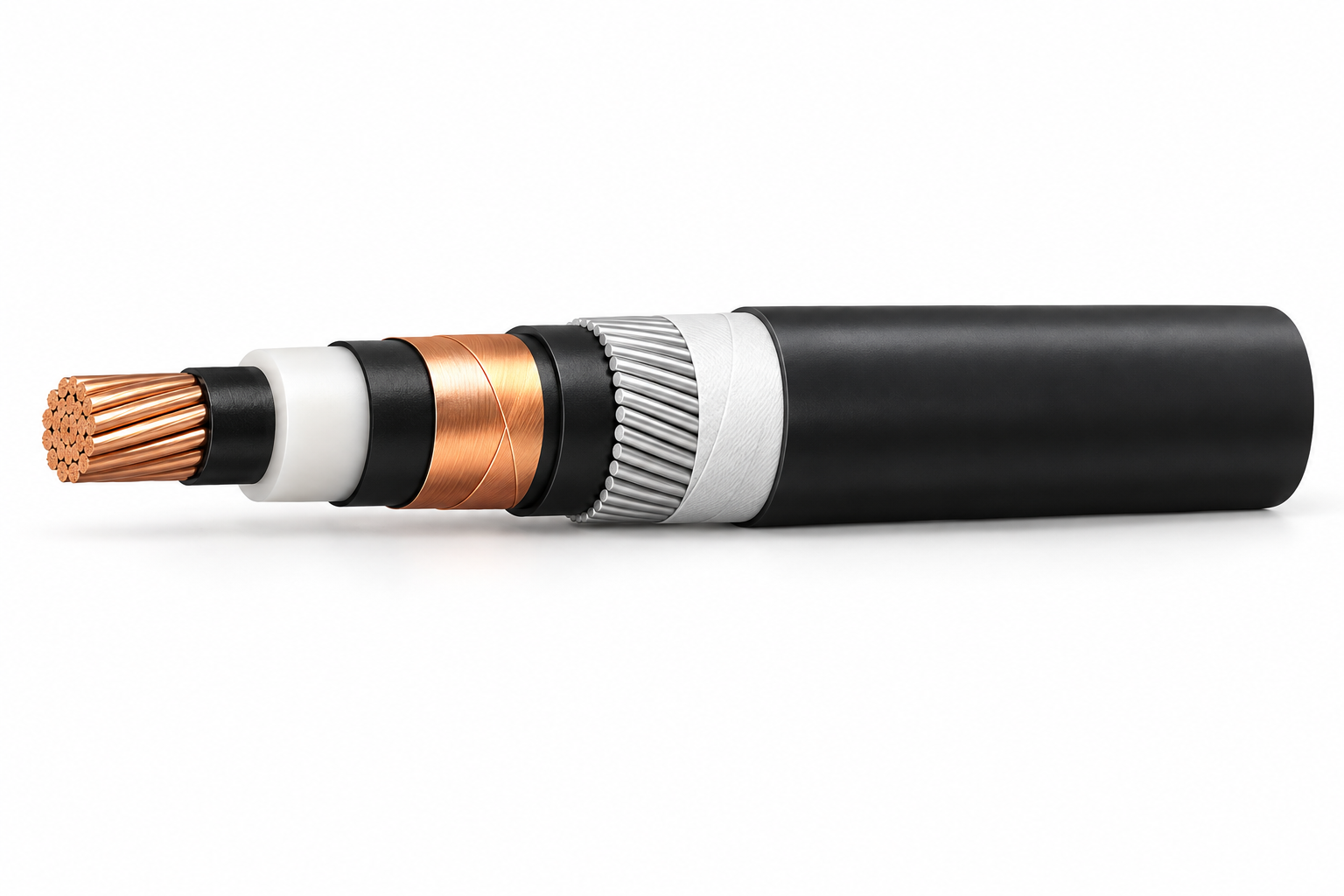

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

1 core

Conductor size range

10–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Aluminium wire armour (AWA)

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

The PDF filename refers to DSTA, while the datasheet heading and construction specify DATA (double aluminium tape armour). Confirm the required armour type before selecting this cable.

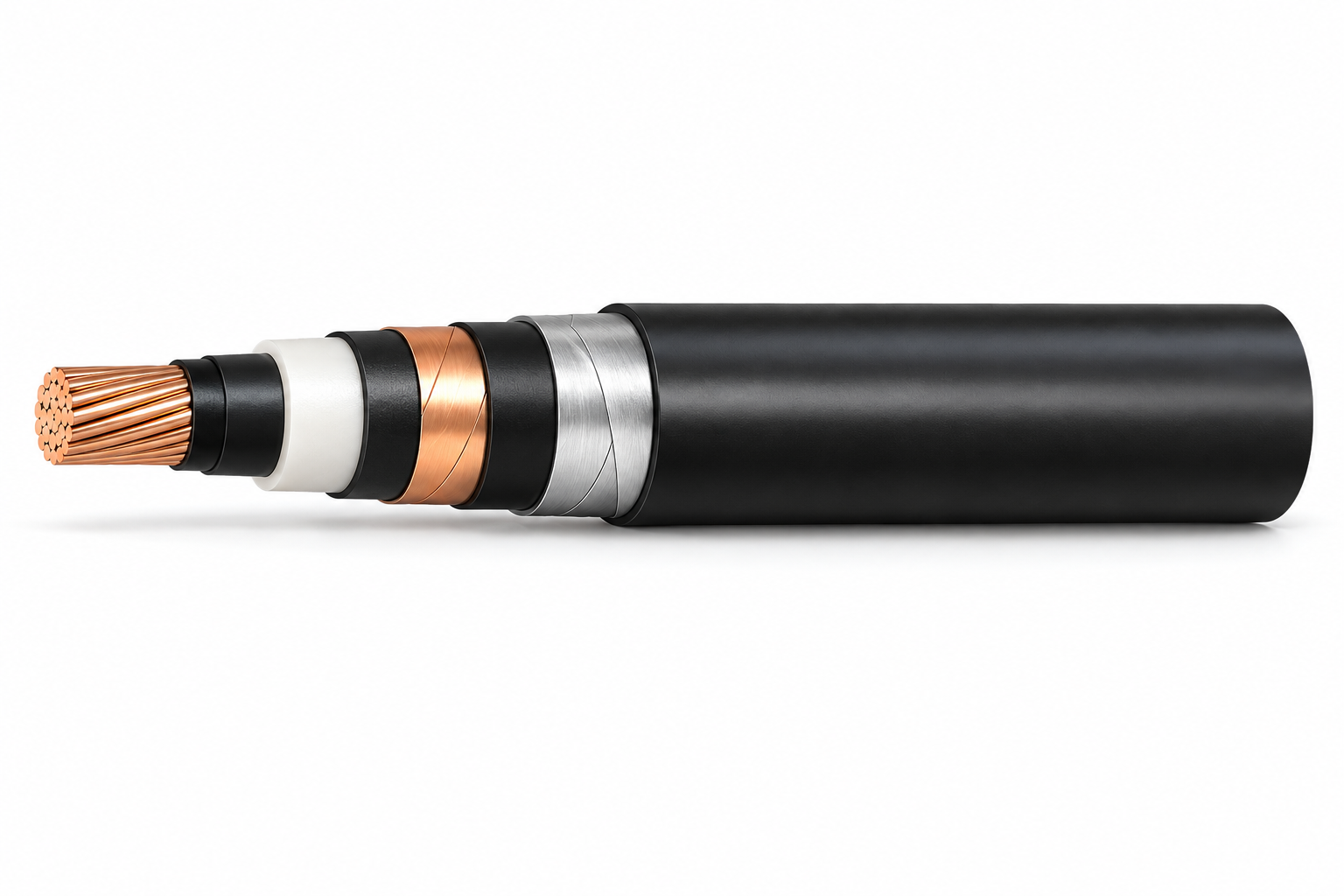

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

1 core

Conductor size range

10–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Double aluminium tape armour (DATA), as specified in the datasheet

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

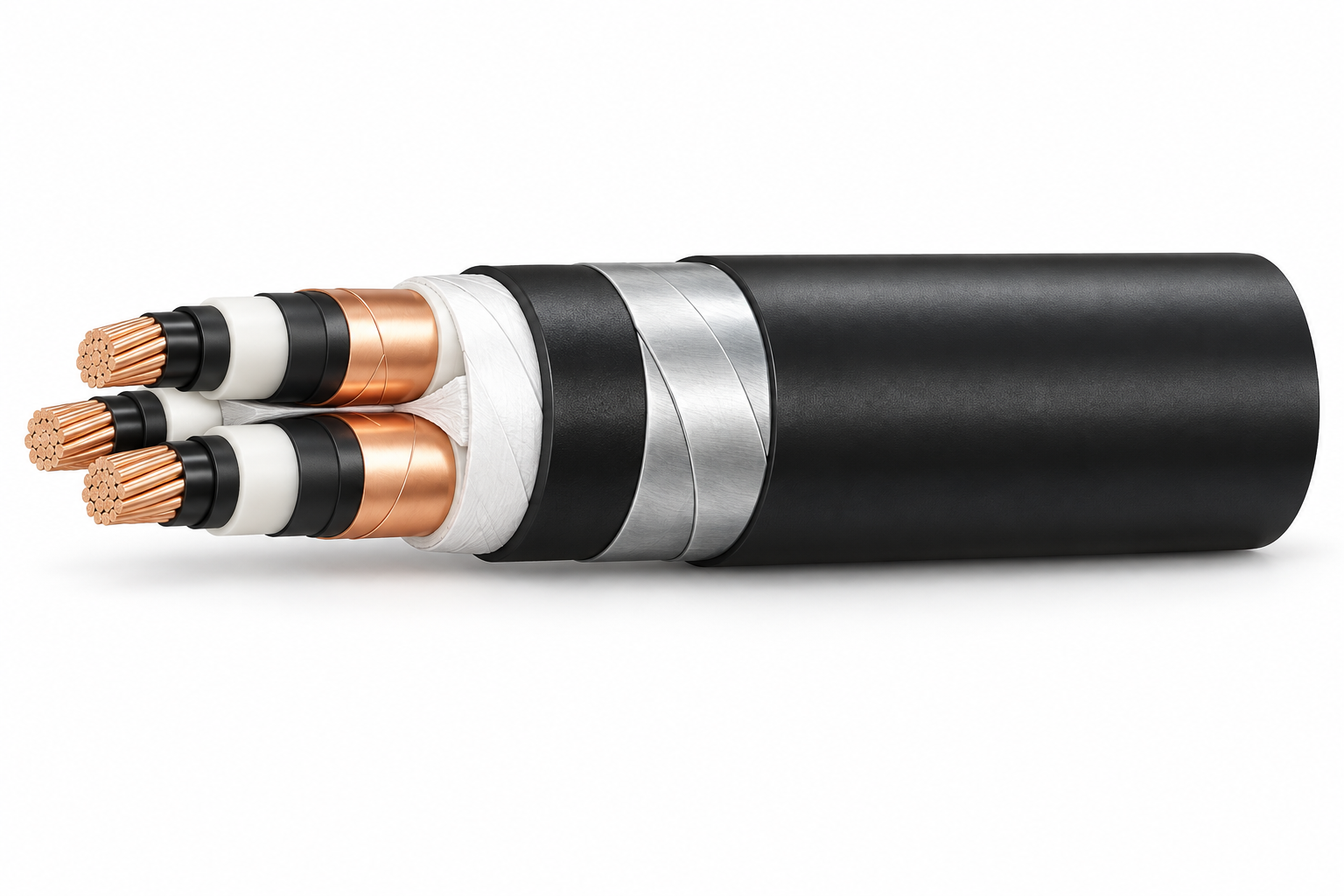

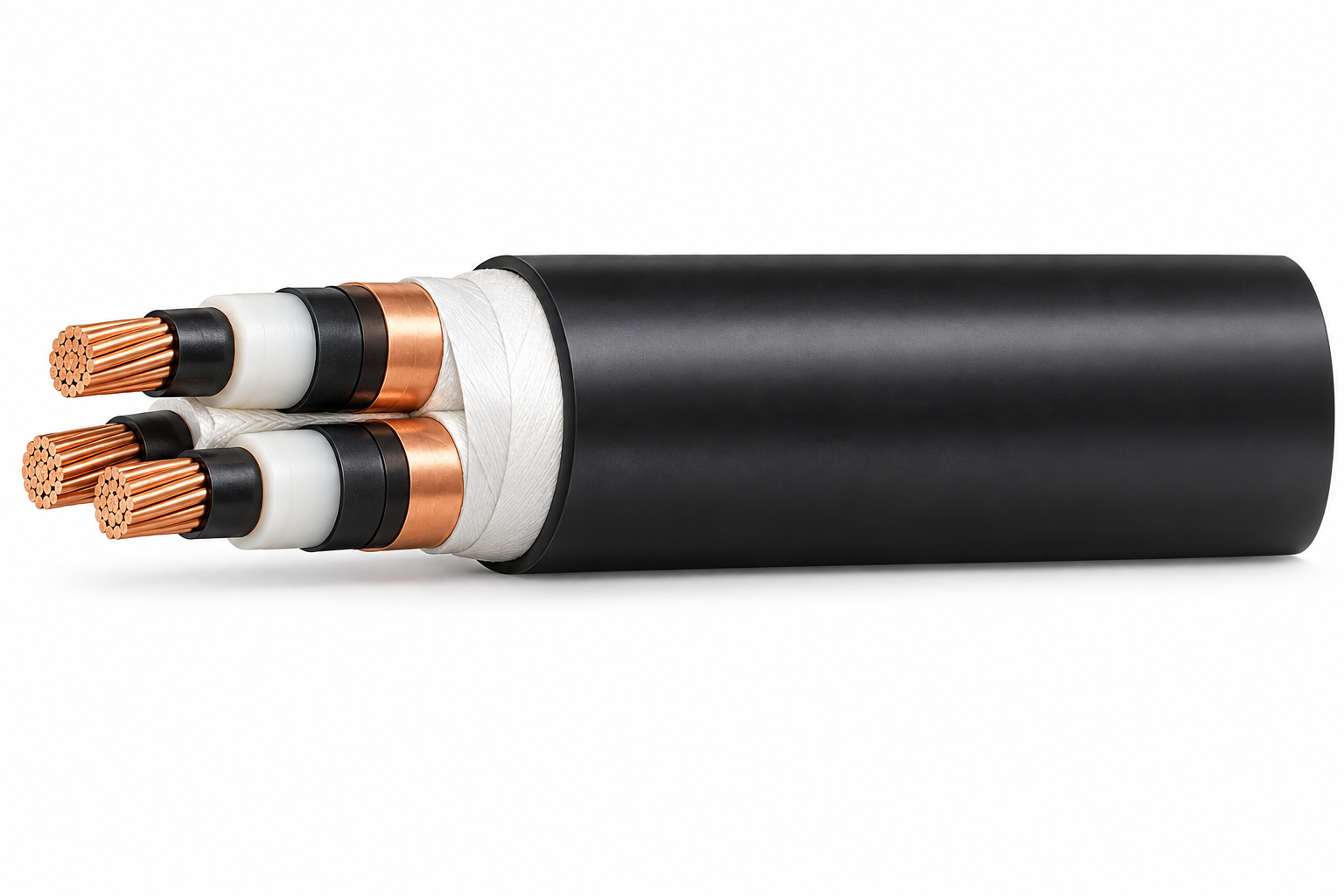

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

3 cores

Conductor size range

10–400 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Unarmoured

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

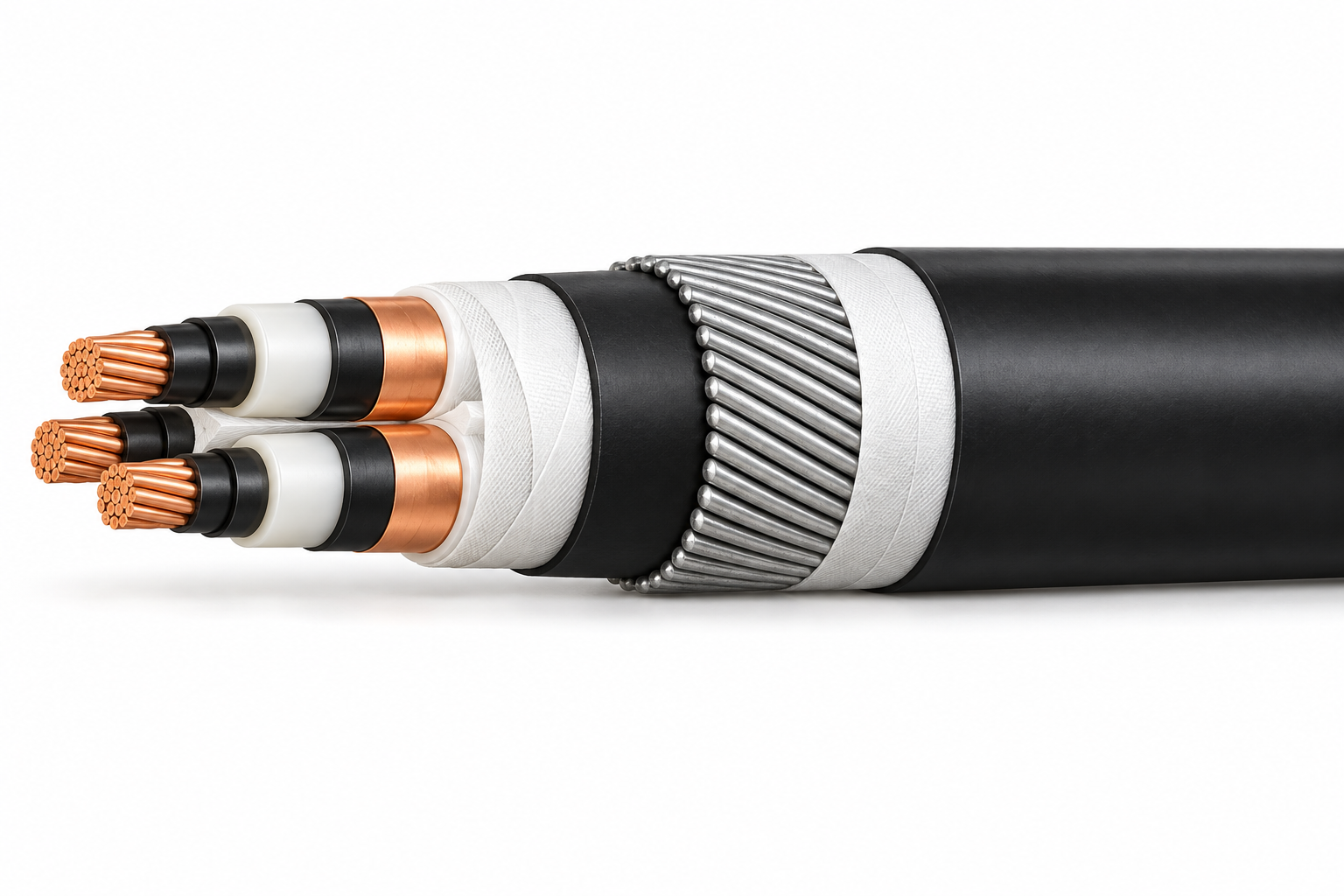

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

3 cores

Conductor size range

10–400 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Galvanised steel wire armour (SWA)

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

3 cores

Conductor size range

10–400 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper tape

Armour

Double steel tape armour (DSTA)

Sheath / outer layer

PVC (ST2)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

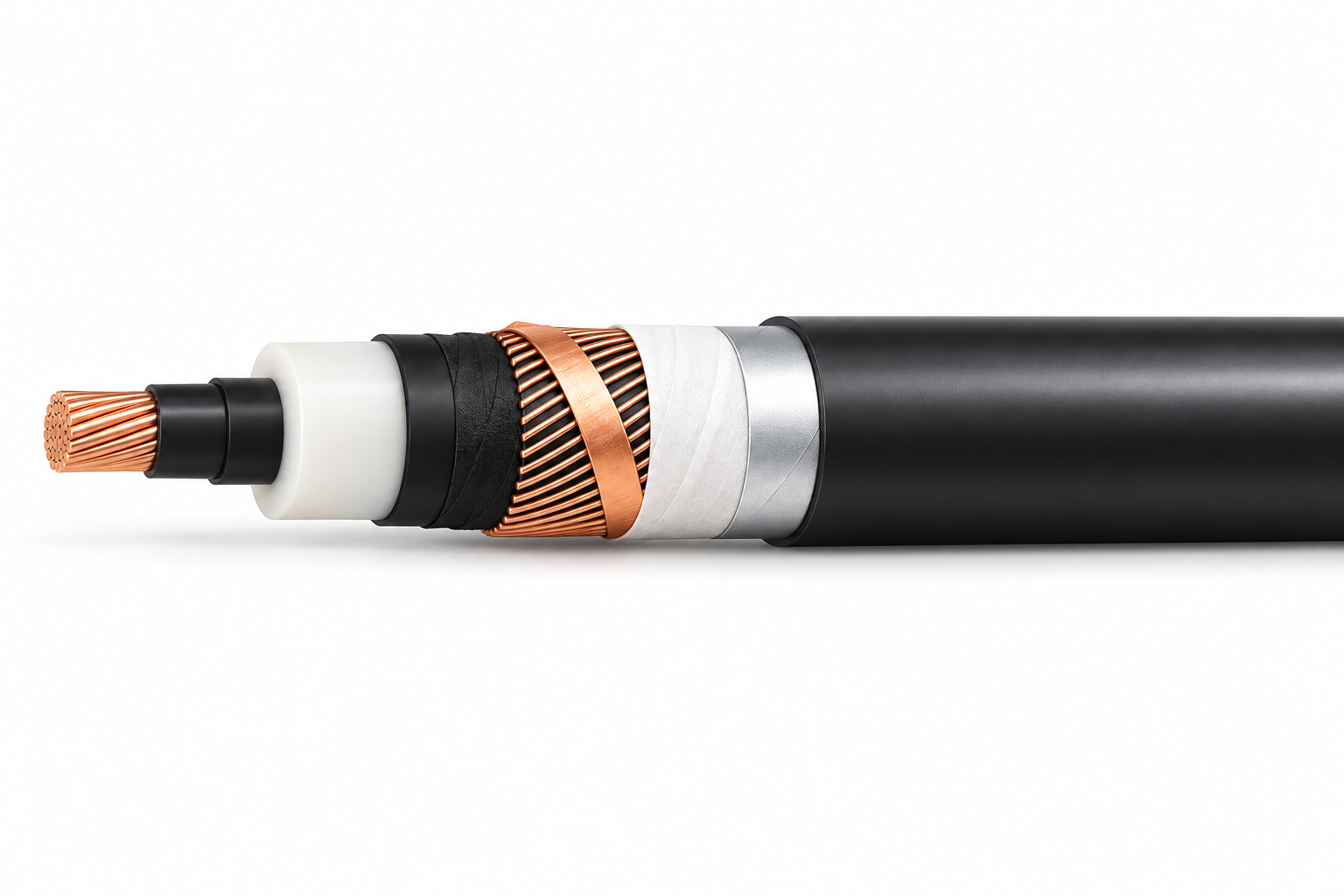

Applications

For urban distribution networks. Suitable for overhead installation, direct burial, and installation in conduits, on open cable trays or in underground ducts.

Voltage ratings

1.8/3 (3.6) kV • 3.6/6 (7.2) kV • 6/10 (12) kV • 8.7/15 (17.5) kV • 12/20 (24) kV • 18/30 (36) kV

Number of cores

1 core

Conductor size range

10–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper wires with copper contact tape

Armour

Unarmoured

Sheath / outer layer

PE (ST7)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60502-1 (1.8/3 kV); IEC 60502-2 (higher voltage ratings)

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

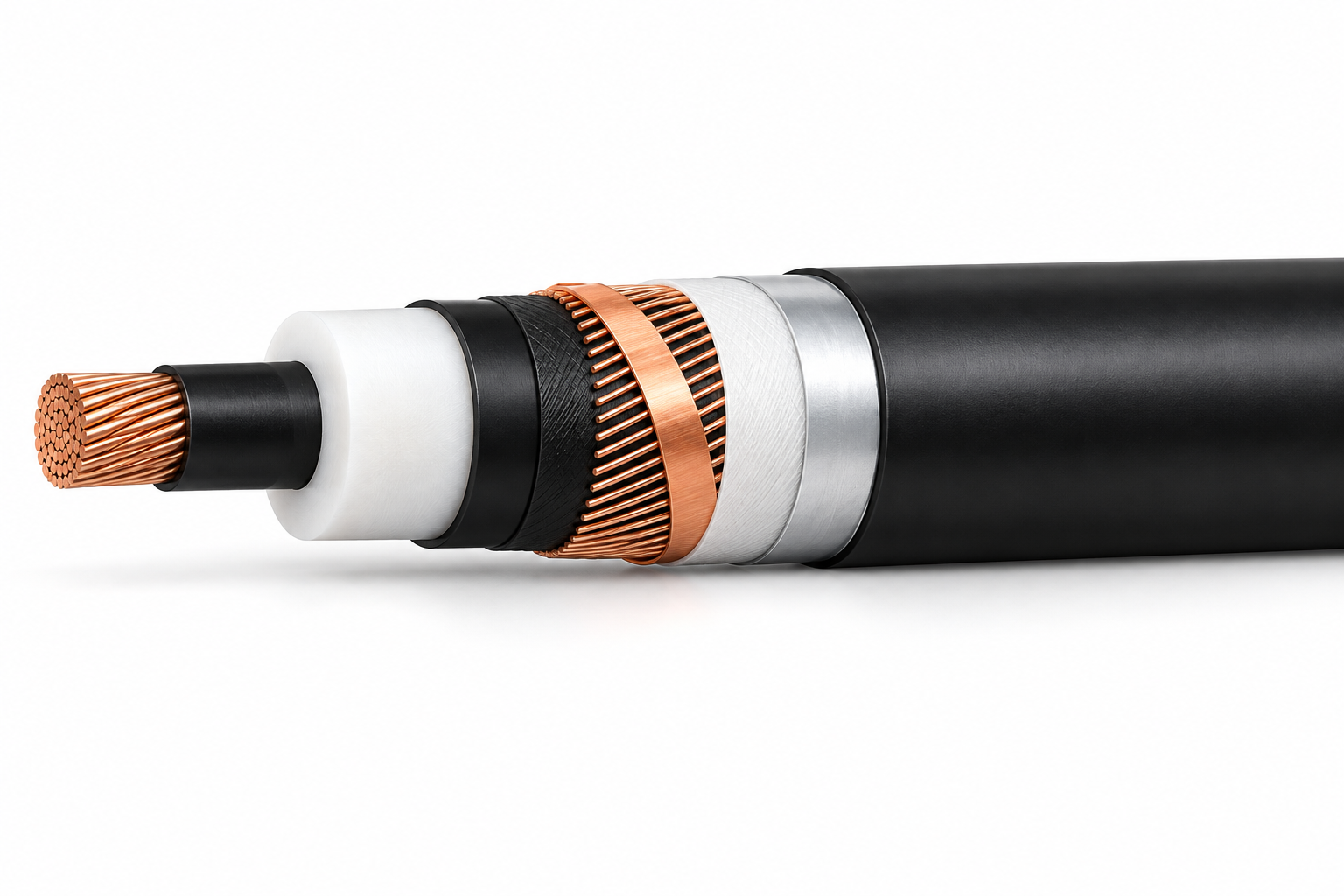

Applications

High-voltage cable for urban networks. Suitable for installation in ducts, on cable trays or by direct burial, including continuous immersion in water under the conditions specified in the datasheet.

Voltage ratings

69 kV

Number of cores

1 core

Conductor size range

240–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper wires with copper contact tape

Armour

Unarmoured

Sheath / outer layer

PE (ST7)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60840

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.

Applications

High-voltage cable for urban networks. Suitable for installation in ducts, on cable trays or by direct burial, including continuous immersion in water under the conditions specified in the datasheet.

Voltage ratings

115 kV

Number of cores

1 core

Conductor size range

400–1,000 mm² (see the datasheet for the sizes available at each voltage rating)

Conductor

Compacted stranded annealed copper

Insulation

Cross-linked polyethylene (XLPE)

Metallic shield

Copper wires with copper contact tape

Armour

Unarmoured

Sheath / outer layer

PE (ST7)

Normal operating temperature

90 °C

Standards listed in the datasheet

IEC 60228; IEC 60840

Refer to the datasheet for dimensions, current ratings and installation requirements for each cable size and voltage rating.
